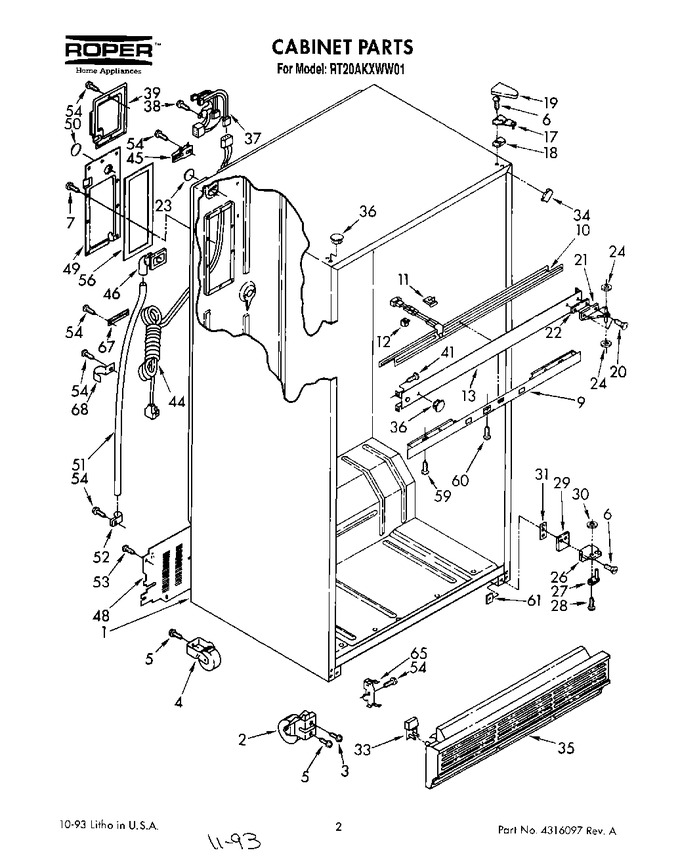

SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf


05 - Freezer Door


06 - Unit


07 - Refrigerator Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	981128		Roller, Front		Appelez-nous	-
3	488681		Screw, 5/16-24 X 1-1/4		Appelez-nous	-
4	2147324		Roller, Rear (2)		Appelez-nous	-
5	WP489427		Screw (6)   (Replaces: 489339)				$ 6.72
6	489327		Screw		Appelez-nous	-
6	489297		Screw (repair)		Appelez-nous	-
7	WP489464		Screw (10)   (Replaces: 489337)			Immediately	$ 7.05
9	1114312		Control, Front Cover		Appelez-nous	-
10	1105433		Heater, Mullion		Appelez-nous	-
11	1129018		Clip, Rail (4)		Appelez-nous	-
12	2149077		Spacer (3)		Appelez-nous	-
13	1105427		Center Rail (almond)		Appelez-nous	-
13	1105424		Center Rail (white)		Appelez-nous	-
17	1123514		Hinge, Top		Appelez-nous	-
18	1123515		Shim, Hinge Top				$ 6.58
19	842010		Hinge Cover (white)		Appelez-nous	-
19	989194		Hinge Cover (almond)		Appelez-nous	-
20	489297		Screw (repair)		Appelez-nous	-
20	489179		Screw		Appelez-nous	-
21	836153		Hinge, Center		Appelez-nous	-
22	836194		Shim, Hinge Center		Appelez-nous	-
22	841604		Shim, Center (repair)		Appelez-nous	-
23	1129056		Hole Seal		Appelez-nous	-
24	WP488296		Washer, 11/64   (Replaces: 488296)				$ 6.47
26	1115908		Hinge Butt, Bottom		Appelez-nous	-
27	654366		Hinge Pin, Bottom				$ 27.15
28	488714		Screw 10-32 X 5/16				$ 5.48
29	836196		Shim, Bottom		Appelez-nous	-
30	489200		Washer, 7/32				$ 7.75
31	1129868		Spacer		Appelez-nous	-
33	1118078		Corner Filler, Grille		Appelez-nous	-
34	1110708		Filler, Wrap Corner (white)		Appelez-nous	-
34	1110709		Filler, Wrap Corner (almond)		Appelez-nous	-
35	1129001		Grille		Appelez-nous	-
36	1129062		Hole Plug (5) (white)		Appelez-nous	-
36	1129063		Hole Plug (5) (almond)		Appelez-nous	-
37	2149633		Cabinet, Wiring Assembly		Appelez-nous	-
38	WP250830		Screw, 8-32 X 1/2   (Replaces: 489048)				$ 7.16
39	1105606		Cover, Wiring		Appelez-nous	-
41	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
44	937360		Cord, Service		Appelez-nous	-
45	937357		Clamp		Appelez-nous	-
46	937062		Fitting, Drain		Appelez-nous	-
48	2147330		Cover, Unit		Appelez-nous	-
49	1105527		Cover, Plug		Appelez-nous	-
50	1120224		Hole Seal		Appelez-nous	-
51	8316810		Tube, Drain   (Replaces: 516506)				$ 107.76
52	836077		Clamp		Appelez-nous	-
53	WPW10141645		Screw   (Replaces: 489084)				$ 6.90
54	WP681414		Screw (repair)   (Replaces: 489254)			Immediately	$ 7.07
54	WP489478		Screw   (Replaces: 489242)				$ 6.98
56	1114548		Gasket, Cover		Appelez-nous	-
59	WP488163		Screw, 8 X 13/16 (2)   (Replaces: 488725)				$ 6.79
60	WP489174		Screw (2)   (Replaces: 489174)				$ 6.26
61	2147310		Tap-plate, Bottom Hinge		Appelez-nous	-
65	WP2155013		Clip, Grille Retainer (2)   (Replaces: 1114789)			Immediately	$ 6.95
67	1105607		Tube Clamp		Appelez-nous	-
68	1110564		Clamp		Appelez-nous	-
