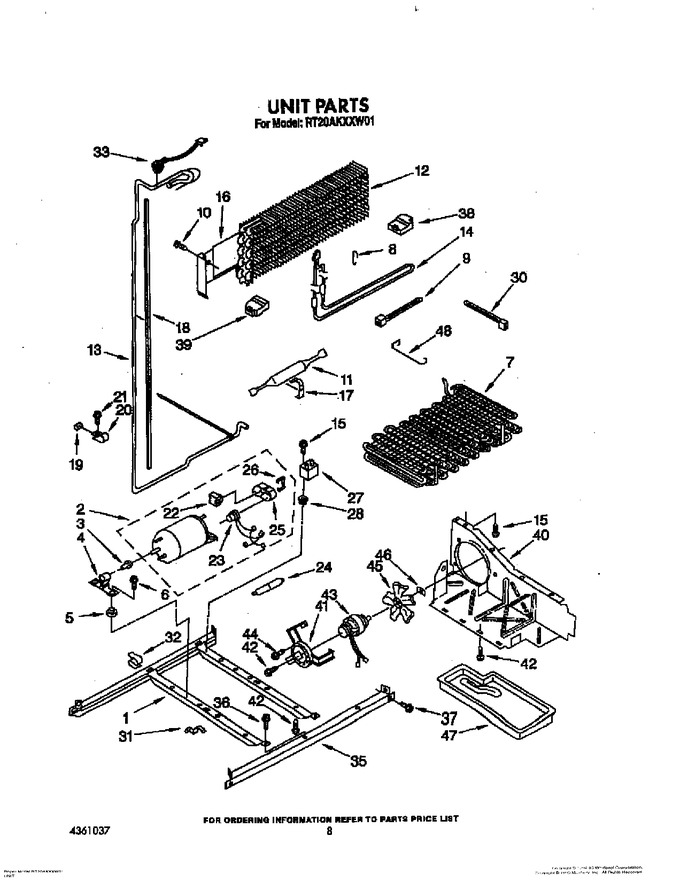

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2154451		Unit, Frame		Appelez-nous	-
2	4317834		Compressor Kit Includes Items (22, 23, 25, 26)		Appelez-nous	-
3	1105219		Grommet, Compressor Bracket		Appelez-nous	-
4	1105220		Bracket, Mounting		Appelez-nous	-
5	1105200		Grommet, Compressor (4)		Appelez-nous	-
6	489334		Screw (4)		Appelez-nous	-
7	2149613		Condenser Assembly		Appelez-nous	-
8	2149120		Support, Heater		Appelez-nous	-
9	1123230		Strap, Mtg.		Appelez-nous	-
10	WP965173		Screw (2)   (Replaces: 487869)			Immediately	$ 9.65
11	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 47.31
12	1118548		Evaporator Assembly		Appelez-nous	-
13	2149616		Heat, Exchanger		Appelez-nous	-
14	2149645		Heater, Defrost		Appelez-nous	-
15	WP489478		Screw   (Replaces: 489242)				$ 6.98
16	1105545		Heat Shield		Appelez-nous	-
17	1127590		Clamp, Dryer		Appelez-nous	-
18	1108690		Sleeve		Appelez-nous	-
19	510769		Dampener (2)		Appelez-nous	-
20	510716		Tube Clamp (2)		Appelez-nous	-
21	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 19.04
22	1108066		Relay, (for Service Compressor Only)		Appelez-nous	-
22	1105209		Start Relay		Appelez-nous	-
23	2149980		Overload		Appelez-nous	-
23	1108067		Overload, (for Service Compressor Only)		Appelez-nous	-
24	1121121		Muffler		Appelez-nous	-
25	1105221		Terminal Cover		Appelez-nous	-
26	1105222		Strap, Cover		Appelez-nous	-
27	WPW10662129		Running, Capacitor   (Replaces: 1114291)			Immediately	$ 52.97
28	509812		Screw Grommet		Appelez-nous	-
30	851095		Strap		Appelez-nous	-
31	548744		Clip, Unit Cover		Appelez-nous	-
32	548745		Clip, Wire (2)		Appelez-nous	-
33	WP4387503		Defrost Bimetal   (Replaces: 2149643)			Immediately	$ 43.10
35	2149717		Unit, Rail		Appelez-nous	-
36	WP489427		Screw   (Replaces: 489339)				$ 6.72
37	489340		Screw (4)		Appelez-nous	-
38	1118805		Support (r.s.)		Appelez-nous	-
39	1118806		Support (l.s.)		Appelez-nous	-
40	1127938		Air, Baffle		Appelez-nous	-
41	548695		Fan, Mounting Bracket		Appelez-nous	-
42	488624		Screw, 8 X 3/8		Appelez-nous	-
43	833697		Fan Motor   (Replaces: 2149963)			Immediately	$ 79.34
44	681390		Screw, 8-32 X 3/8 (3)   (Replaces: 489019)				$ 11.75
45	1108179		Fan, Blade				$ 49.54
46	WP486692		Speed Nut   (Replaces: 486692)				$ 7.04
47	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 101.86
48	876764		Valve, Access(3/16``)			Immediately	$ 82.22
48	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
48	978028		Valve, Access (1/2)		Appelez-nous	-
48	978029		Valve Access (5/8``)				$ 93.85
48	978030		Valve, Access (3/4``)				$ 117.64
48	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
48	1105612		Guard, Fan				$ 36.52
48	978026		Valve, Access (5/16``)			Immediately	$ 115.28
