SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf


05 - Freezer Door


06 - Unit


07 - Refrigerator Door, Lit/optional

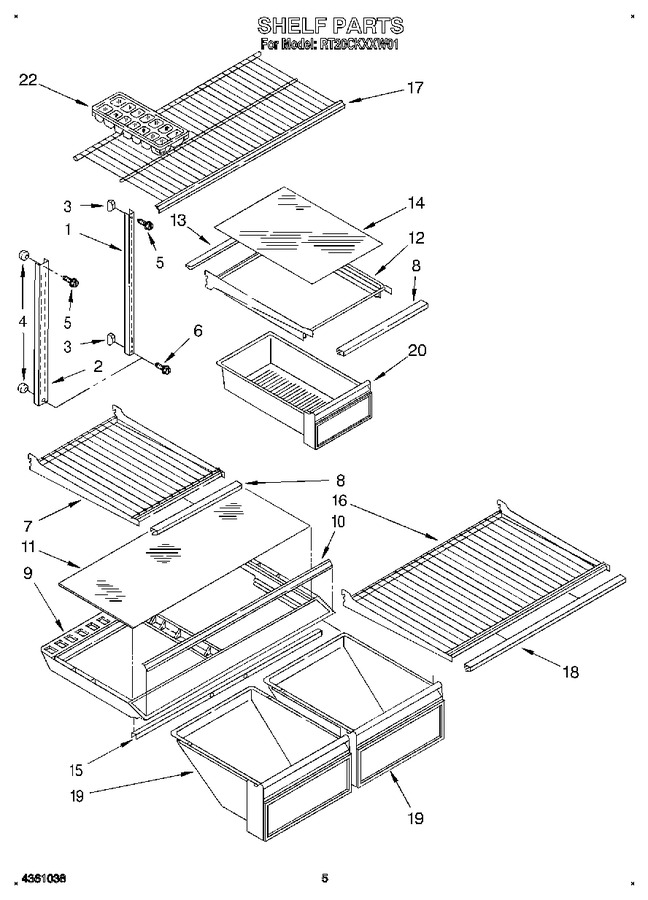

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 26.87
4	520959		Screw, Support Center (2)		Appelez-nous	-
5	489345		Screw (3)		Appelez-nous	-
6	WP488163		Screw, 8 X 1 (3)   (Replaces: 488163)				$ 6.79
7	1110738		Shelf, Cantilever (3)		Appelez-nous	-
8	1124366		Trim, Shelf		Appelez-nous	-
9	1124362		Crisper Cover		Appelez-nous	-
10	1119480		Trim, Crisper Cover		Appelez-nous	-
11	1124363		Glass, Crisper Cover		Appelez-nous	-
12	1110756		Pan Shelf, Cantilever		Appelez-nous	-
13	1110744		Retainer, Glass		Appelez-nous	-
14	1124367		Glass, Shelf		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 1106613)				$ 87.50
16	1120135		Shelf, Full Cantilever		Appelez-nous	-
17	1106615		Shelf, Freezer		Appelez-nous	-
18	2152284		Trim, Shelf		Appelez-nous	-
19	1124364		Pan, Crisper		Appelez-nous	-
20	1124369		Pan, Meat		Appelez-nous	-
22	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 41.00

    View Diagram in Separate Window       Print Part List
