SELECT A DIAGRAM

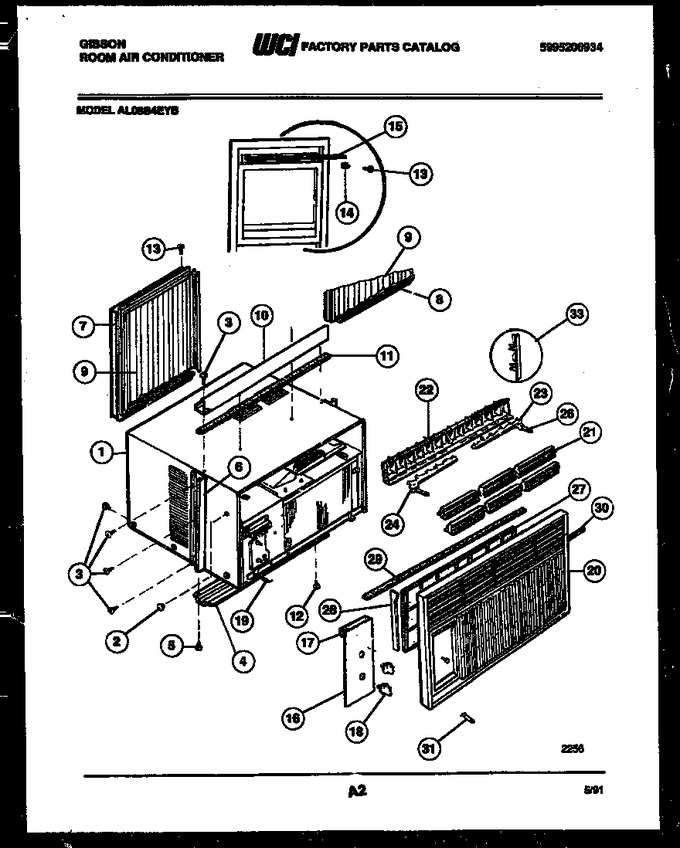

02 - Cabinet Parts


03 - Air Handling Parts


04 - Electrical Parts


05 - System Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303270060		Wrapper		Appelez-nous	-
2	08016091		Plug		Appelez-nous	-
3	3015312		Screw		Appelez-nous	-
4	5303270072		Rail Bottom		Appelez-nous	-
5	3001806		Screw-rail Btm.		Appelez-nous	-
6	5303270073		Retainer		Appelez-nous	-
7	5303270061		Frame Extension Lh		Appelez-nous	-
8	5303270062		Frame Extension Rh		Appelez-nous	-
9	5303270075		Accordian Closure		Appelez-nous	-
10	5303270064		Rail Top		Appelez-nous	-
11	08016226		Seal		Appelez-nous	-
12	08016080		Screw-leveling		Appelez-nous	-
13	5308002974		Screw Frame To Sash		Appelez-nous	-
14	5303211056		Angle Bracket Window		Appelez-nous	-
15	3002603		Seal Window Sash		Appelez-nous	-
16	3017316		Dial Plate		Appelez-nous	-
17	5303001861		Seal		Appelez-nous	-
18	5303017300		Knob (2)		Appelez-nous	-
19	5303270058		Service Cord		Appelez-nous	-
20	5303273249		Frame		Appelez-nous	-
21	3017318		Louver-horiz		Appelez-nous	-
22	5303002457		Vertical Louver & Link Assy		Appelez-nous	-
23	5303002160		Link-vertical Louver Rh		Appelez-nous	-
24	08017146		Link Vertical Louver Lh		Appelez-nous	-
26	5303001844		Clip-link		Appelez-nous	-
27	3017518		Filter		Appelez-nous	-
28	3017941		Rail Filter Lh		Appelez-nous	-
28	3017517		Rail Filter Rh		Appelez-nous	-
29	3017398		Seal Top & Sides		Appelez-nous	-
30	3017137		Seal-mullion		Appelez-nous	-
31	3201472		Clip Front		Appelez-nous	-
33	5303017319		Retainer-louver		Appelez-nous	-
19A	5303209262		Front Complete (non-illustrated)		Appelez-nous	-
1A	08010928		Nut Front Lock (non-illustrated)		Appelez-nous	-
24A	3203075		Clip Control Bulb (non-illustrated)		Appelez-nous	-
31A	5303271346		Screw-front		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
