02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

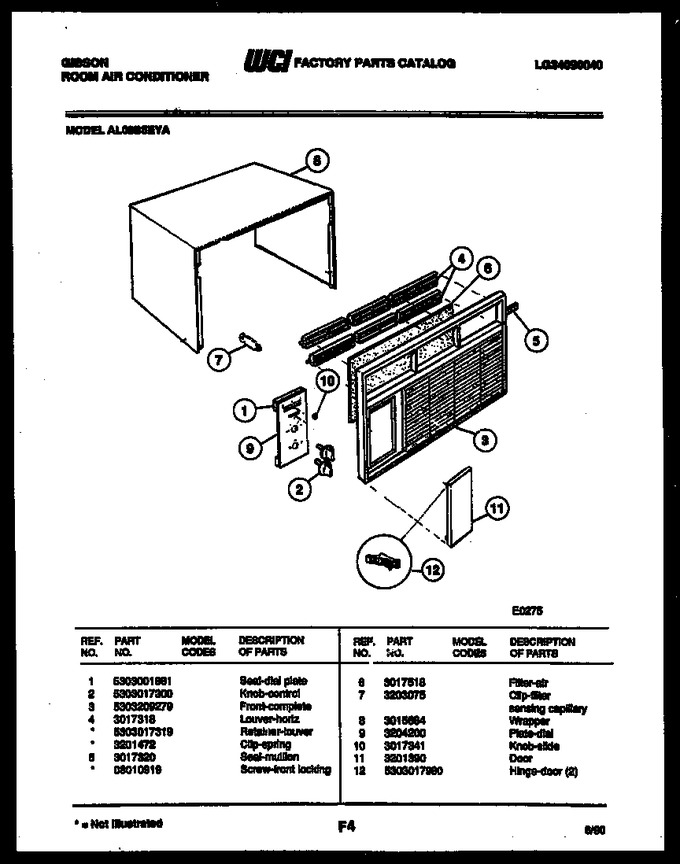

| 1 | 5303001861 | Seal-dial Plate |
|
- | |||||
| 2 | 5303017300 | Knob-control |
|
- | |||||
| 3 | 5303209279 | Front-complete |
|
- | |||||
| 4 | 3017318 | Louver-horiz |
|
- | |||||
| 5 | 3017320 | Seal-mullion |
|
- | |||||
| 6 | 3017518 | Filter-air |
|
- | |||||
| 7 | 3203075 | Clip-filter & Sensing Capillary |
|
- | |||||
| 8 | 3015684 | Wrapper |
|
- | |||||
| 9 | 3204200 | Plate - Dial |
|
- | |||||
| 10 | 3017341 | Knob-slide |
|
- | |||||
| 11 | 3201390 | Door |
|
- | |||||
| 12 | 5303017980 | Hinge-door (2) |
|
- | |||||
| 4A | 5303017319 | Retainer-louver (non-illustrated) |
|
- | |||||
| 4B | 3201472 | Clip - Spring (non-illustrated) |
|
- | |||||
| 5A | 08010919 | Screw-front Locking (non-illustrated) |
|
- |
