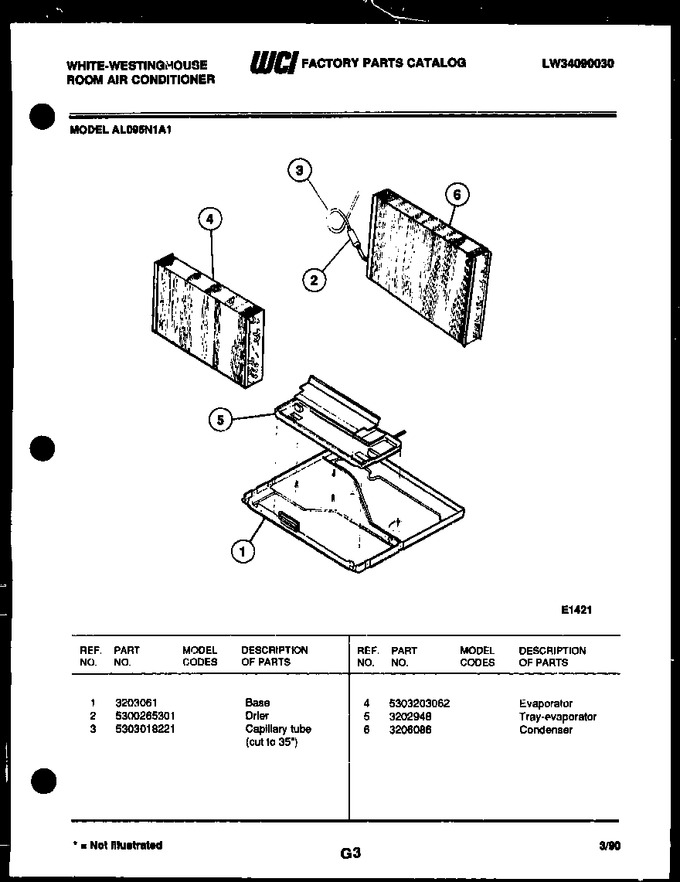

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203061 | Base |
|
- | |||||
| 2 | 5300265301 | Drier |
|
$ 284.30 | |||||
| 3 | 5303018221 | Capillary Tube-cut To 35`` |
|
- | |||||
| 4 | 5303203062 | Evaporator |
|
- | |||||
| 5 | 3202948 | Tray-evaporator |
|
- | |||||
| 6 | 3206086 | Condenser |
|
- |
