SELECT A DIAGRAM
01 - Cabinet
02 - Liner, Lit/optional

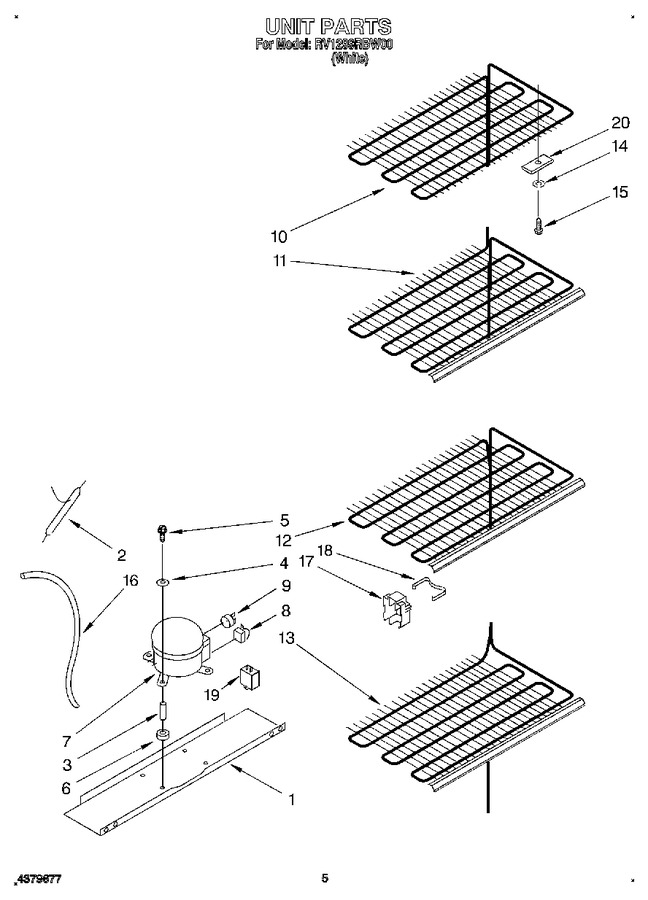

03 - Unit
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4357056 | Compressor Mounting Pan |
|
- | |||||
| 2 | 4007A | Drier (Replaces: 4356332) |
|
Immediately | $ 13.55 | ||||
| 3 | 4356846 | Compressor Grommet Sleeve |
|
$ 12.86 | |||||
| 4 | 4356847 | Washer |
|
- | |||||
| 5 | 4357054 | Compressor Mounting Screw |
|
- | |||||
| 6 | 4356335 | Compressor Grommet |
|
- | |||||
| 7 | 4357053 | Compressor |
|
- | |||||
| 8 | 4356994 | Relay |
|
- | |||||
| 9 | 4357021 | Overload |
|
- | |||||
| 10 | 4356882 | Evaporator Top |
|
- | |||||
| 11 | 4357008 | Evaporator Shelf |
|
- | |||||
| 12 | 4356885 | Evaporator Shelf |
|
- | |||||
| 13 | 4356887 | Evaporator Shelf |
|
- | |||||
| 14 | 4357057 | Washer |
|
- | |||||
| 15 | 4356851 | Evaporator, Mounting Screw |
|
- | |||||
| 16 | 4356999 | Heat Exchanger |
|
- | |||||
| 17 | 4356946 | Cover |
|
- | |||||
| 18 | 4356951 | Cover Clip |
|
- | |||||
| 19 | WPW10662129 | Capacitor (Replaces: 4357055) |
|
Immediately | $ 52.97 | ||||
| 20 | 4356854 | Clamp |
|
- |
