SELECT A DIAGRAM

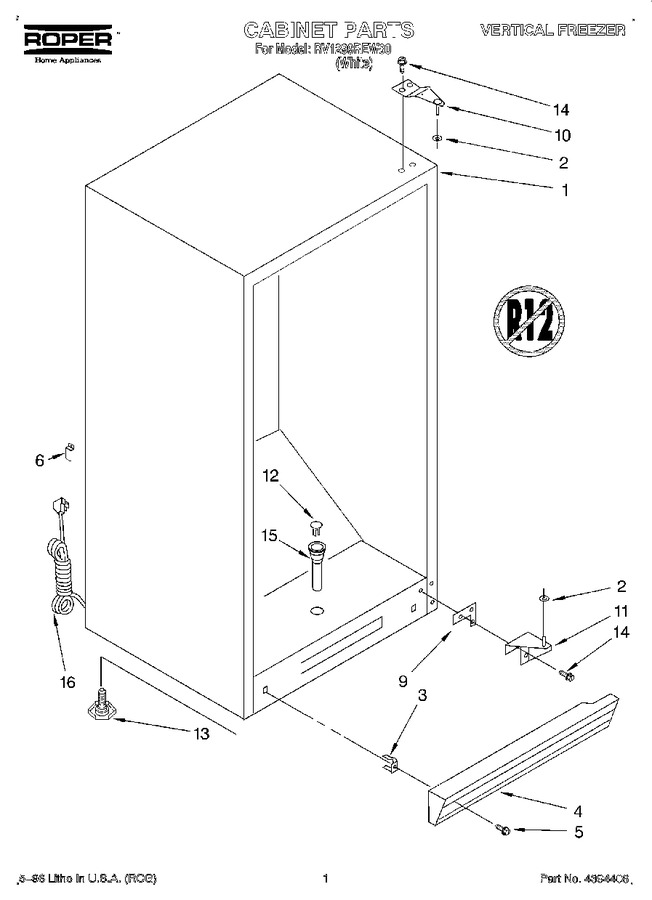

01 - Cabinet


02 - Liner, Lit/optional


03 - Unit


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	W10851331		Washer, Door Spacer   (Replaces: 4356801)				$ 9.51
3	1-80247-101		Clip, Grille   (Replaces: 4356803)			Immediately	$ 9.86
4	4357051		Grille		Appelez-nous	-
5	WP489478		Screw   (Replaces: 4356805)				$ 6.98
6	4356403		Clip		Appelez-nous	-
9	4356828		Shim, Bottom				$ 12.40
10	4357052		Top, Hinge		Appelez-nous	-
11	4357050		Bottom, Hinge		Appelez-nous	-
12	4357019		Drain Plug		Appelez-nous	-
13	W11117769		Leg, Leveller   (Replaces: 4357045)			Immediately	$ 16.61
14	WP8204624		Screw   (Replaces: 4356830)				$ 14.99
15	4357147		Grommet, Drain		Appelez-nous	-
16	4357058		Power Cord				$ 28.18

    View Diagram in Separate Window       Print Part List
