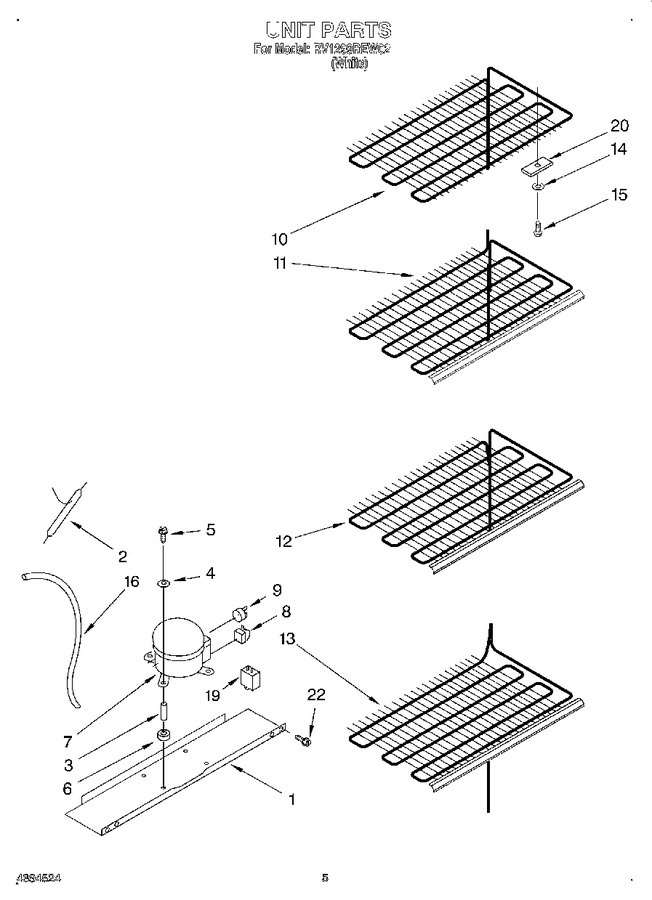

01 - Cabinet


02 - Liner, Lit/optional


03 - Unit


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4357056		Compressor Mounting Pan		Appelez-nous	-
2	4007A		Drier   (Replaces: 4356332)			Immediately	$ 13.55
3	4356846		Compressor Grommet Sleeve				$ 12.86
4	4356847		Washer		Appelez-nous	-
5	4357054		Compressor Mounting Screw		Appelez-nous	-
6	4356335		Compressor Grommet		Appelez-nous	-
7	W10309989		Compressor (includes Items 6, 8 & 9)   (Replaces: 4390574)			Immediately	$ 591.26
8	4356994		Relay		Appelez-nous	-
9	2183409		Overload   (Replaces: 4390576)				$ 111.81
10	4357183		Evaporator Top		Appelez-nous	-
11	4357184		Evaporator Shelf		Appelez-nous	-
12	4357214		Evaporator Shelf		Appelez-nous	-
13	4357186		Evaporator Shelf		Appelez-nous	-
14	4357057		Washer		Appelez-nous	-
15	WP3-24004-109		Evaporator, Mounting Screw   (Replaces: 4357110)				$ 7.25
16	4357182		Heat Exchanger		Appelez-nous	-
19	WPW10662129		Capacitor   (Replaces: 4357094)			Immediately	$ 52.97
20	4356854		Clamp		Appelez-nous	-
22	WP3-24838-048		Screw   (Replaces: 4356820)				$ 7.00
