SELECT A DIAGRAM

01 - Cabinet


02 - Liner, Lit/optional


03 - Door


04 - Unit

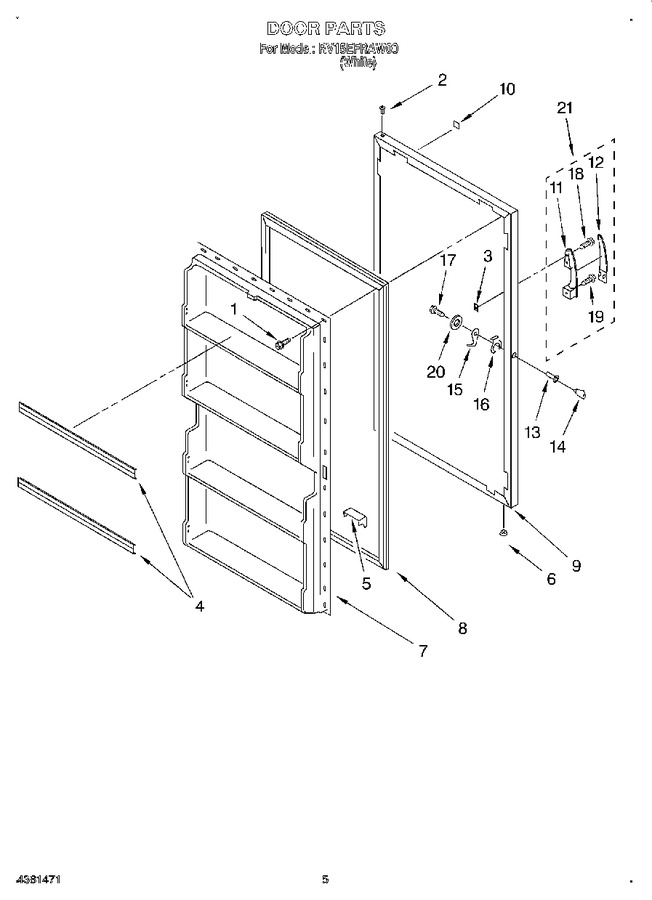

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489478		Screw   (Replaces: 4356810)				$ 6.98
2	4356811		Hinge, Bushing		Appelez-nous	-
3	4356812		Anchor, Screw		Appelez-nous	-
4	4356813		Door Shelf Trim (4)		Appelez-nous	-
5	4356893		Foam Block		Appelez-nous	-
6	3-24898-007		Vent Plug   (Replaces: 4356894)				$ 9.72
7	WP4390870		Interior Door   (Replaces: 4357084)				$ 238.94
8	WP4357099		Door Gasket   (Replaces: 4357085)				$ 290.47
9	4357083		Exterior Door (includes Insulation)		Appelez-nous	-
10	4356902		Nameplate		Appelez-nous	-
11	4356913		Handle, Black		Appelez-nous	-
12	4356914		Handle, Insert		Appelez-nous	-
13	4357145		Lock, Body   (Replaces: 4356839)				$ 23.82
14	WP4356840		Key   (Replaces: 4356840)				$ 9.67
15	3-35284-001		Lock, Bolt   (Replaces: 4356841)				$ 24.42
16	4356842		Spring, Clip Mounting				$ 12.24
17	WP489478		Screw, Lock Bolt   (Replaces: 4356843)				$ 6.98
18	WP3-24004-109		Screw   (Replaces: 4390510)				$ 7.25
19	W10709795		Screw   (Replaces: 4390511)				$ 11.82
20	4356992		Washer		Appelez-nous	-
21	4357047		Handle Kit (includes Items 11, 12, 18 & 19)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
