SELECT A DIAGRAM

01 - Cabinet


02 - Liner, Lit/optional

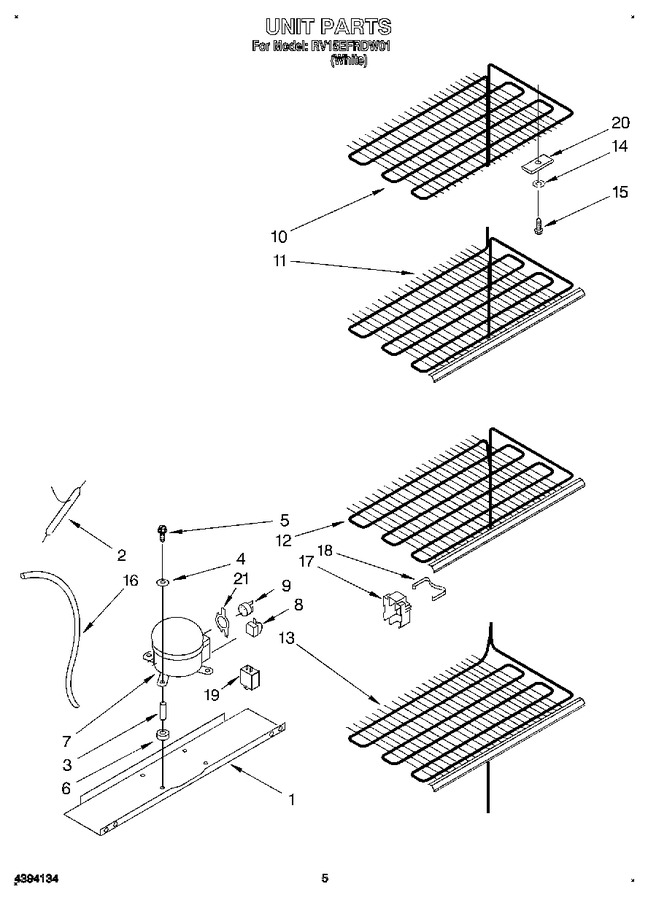

03 - Unit


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4357087		Compressor Mounting Pan		Appelez-nous	-
2	4007A		Drier   (Replaces: 4356332)			Immediately	$ 13.55
3	4356846		Compressor Grommet Sleeve				$ 12.86
4	4356847		Washer		Appelez-nous	-
5	4357054		Compressor Mounting Screw		Appelez-nous	-
6	4356335		Compressor Grommet		Appelez-nous	-
7	W10439652		Compressor   (Replaces: 4357133)				$ 379.03
8	4356994		Relay		Appelez-nous	-
9	2162216		Overload   (Replaces: 4356989)				$ 136.14
10	488946		Evaporator Top   (Replaces: 4356859)				$ 18.41
11	4357009		Evaporator Shelf		Appelez-nous	-
12	4356864		Evaporator Shelf		Appelez-nous	-
13	4356866		Evaporator Shelf		Appelez-nous	-
14	4357057		Washer		Appelez-nous	-
15	4356851		Evaporator, Mounting Screw		Appelez-nous	-
16	4356990		Heat Exchanger		Appelez-nous	-
17	4356946		Cover		Appelez-nous	-
18	4356951		Cover Clip		Appelez-nous	-
19	WPW10662129		Capacitor   (Replaces: 4357055)			Immediately	$ 52.97
20	4356854		Clamp		Appelez-nous	-
21	4356945		Clip, Overload		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
