SELECT A DIAGRAM

01 - Cabinet


02 - Liner, Lit/optional


03 - Unit

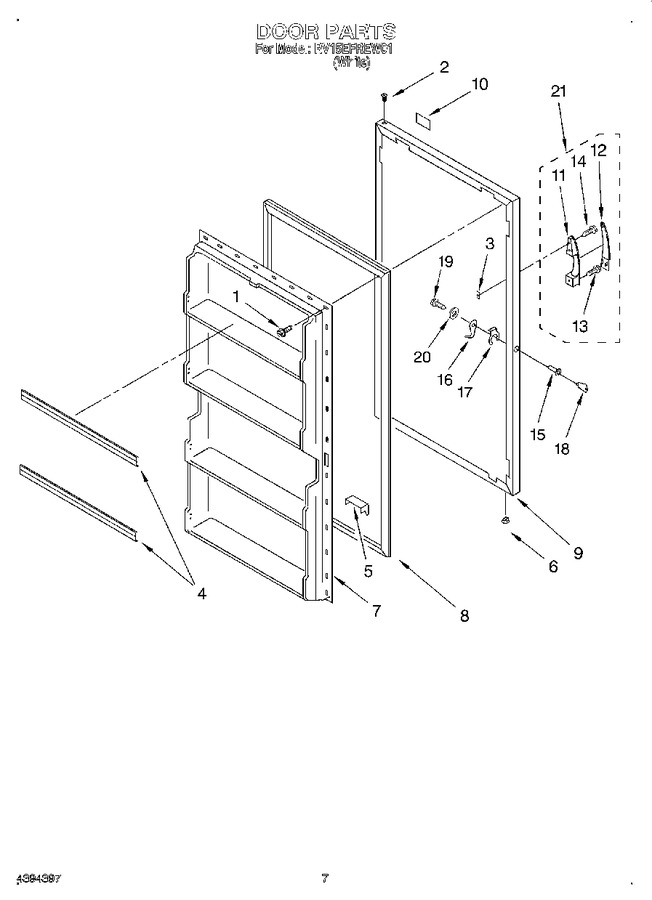

04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489478		Screw   (Replaces: 4356810)				$ 6.98
2	4356811		Hinge, Bushing		Appelez-nous	-
3	4356812		Anchor, Screw		Appelez-nous	-
4	4356813		Door Shelf Trim (4)		Appelez-nous	-
5	4356893		Foam Block		Appelez-nous	-
6	3-24898-007		Vent Plug   (Replaces: 4356894)				$ 9.72
7	WP4390870		Interior Door   (Replaces: 4357084)				$ 238.94
8	WP4357099		Door Gasket   (Replaces: 4357085)				$ 290.47
9	4357083		Exterior Door		Appelez-nous	-
10	4356902		Nameplate		Appelez-nous	-
11	4356913		Handle		Appelez-nous	-
12	4357138		Insert, Handle		Appelez-nous	-
13	WP3-24004-109		Screw (long)   (Replaces: 4390510)				$ 7.25
14	W10709795		Screw (short)   (Replaces: 4390511)				$ 11.82
15	4357145		Lock, Body				$ 23.82
16	3-35284-001		Lock, Bolt   (Replaces: 4356841)				$ 24.42
17	4356842		Spring Clip				$ 12.24
18	WP4356840		Key   (Replaces: 4356840)				$ 9.67
19	WP489478		Screw   (Replaces: 4356843)				$ 6.98
20	4356992		Washer		Appelez-nous	-
21	4357132		Handle Assembly (includes Items 11, 12, 13 & 14)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
