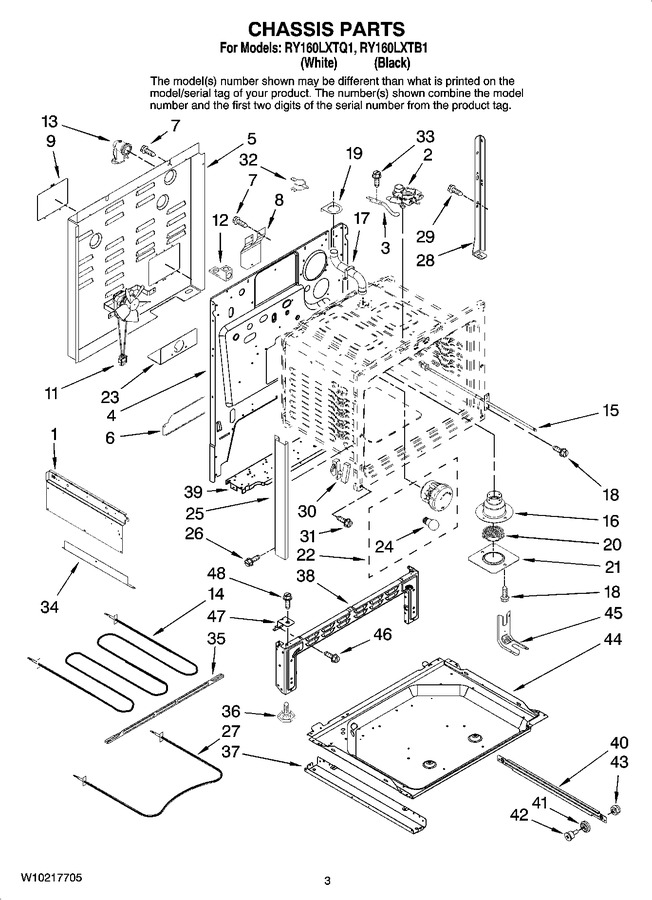

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74010822		Panel, Shield (right)		Appelez-nous	-
1	74010821		Panel, Shield (left)		Appelez-nous	-
2	74010897		Latch Assembly		Appelez-nous	-
3	74002974		Lever, Latch (gray)				$ 45.72
3	74001075		Lever, Latch (black)		Appelez-nous	-
4	74011465		Main Back		Appelez-nous	-
5	W10203736		Cover, Main Wire				$ 92.37
6	74010815		Extension, Back		Appelez-nous	-
7	WP90767		Screw   (Replaces: Y700502)			Immediately	$ 7.04
8	74006364		Insulator, Cord		Appelez-nous	-
9	74005264		Panel, Access		Appelez-nous	-
11	WPW10586440		Fan, Cooling   (Replaces: 74010823)				$ 286.74
12	WPW10281322		Block, Bare Wire   (Replaces: 74008298)				$ 7.61
13	74004223		Connector, Cable		Appelez-nous	-
14	WP7406P218-60		Element, Broil   (Replaces: 74003040)			Immediately	$ 152.28
15	12001656		Sensor, Oven   (Replaces: 74004943)			Immediately	$ 39.55
16	W10165722		Tube, Vent Lower				$ 66.44
17	74010886		Tube, Vent Upper		Appelez-nous	-
18	WP7101P434-60		Screw (4)   (Replaces: 71001394)				$ 6.26
19	74010817		Holder, Vent Tube		Appelez-nous	-
20	74008597		Smoke Eliminator		Appelez-nous	-
21	W10165724		Plate, Smoke Elm.		Appelez-nous	-
22	WP7407P182-60		Light Assembly   (Replaces: 74010885)			Immediately	$ 66.10
23	W10190166		Bracket, Power Supply   (Replaces: 74004180)				$ 8.32
24	8009		Bulb-oven   (Replaces: 7407P103-60)			Immediately	$ 16.80
25	74010832		Trim, Side (white (2))		Appelez-nous	-
25	74010831		Trim, Side (black (2))		Appelez-nous	-
26	WP74003976		Screw   (Replaces: 74003976)				$ 6.47
27	WPW10310274		Element, Bake   (Replaces: 74010883)			Immediately	$ 108.59
28	74010884		Support, Oven Rear		Appelez-nous	-
29	WP7101P434-60		Screw   (Replaces: 71001394)				$ 6.26
30	74011142		Hinge (2)			Immediately	$ 108.22
31	WP4159193		Screw, Hinge (4)   (Replaces: 7101P282-60)				$ 4.29
32	WP7450P034-60		Switch, Hi-limit   (Replaces: 74010818)				$ 195.82
33	74003975		Screw, Lever (2)				$ 12.02
34	74010820		Extension, Shield		Appelez-nous	-
35	74003386		Support, Element		Appelez-nous	-
36	WP74010805		Leg, Leveling   (Replaces: 74010805)				$ 6.47
37	4020W035-80		Pedestal, Bottom   (Replaces: 74010899)				$ 101.54
38	74010882		Pedestal, Front		Appelez-nous	-
39	74007129		Support				$ 9.81
40	74003565		Runner, Drawer (2)		Appelez-nous	-
41	WP74004078		Roller Drawer (2)   (Replaces: 74004078)			Immediately	$ 10.70
42	74005231		Shaft, Roller (2)				$ 9.23
43	74005230		Nut, Lock (2)				$ 12.02
44	74006522		Retainer, Bottom		Appelez-nous	-
45	WP3801F656-51		Bracket, Anti-tip   (Replaces: 74005564)			Immediately	$ 4.69
46	WP74003976		Screw W/ Washer   (Replaces: 7101P124-60)				$ 6.47
47	74010812		Support, Oven Bottom		Appelez-nous	-
48	WP74003976		Screw   (Replaces: 74003976)				$ 6.47
	7002P456-60		Insulation, Oven Bottom   (Replaces: 74011207)		Appelez-nous	-
	W10165725		Insulation, Back				$ 74.98
	74010987		Insulation, Wrap				$ 60.00
