View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

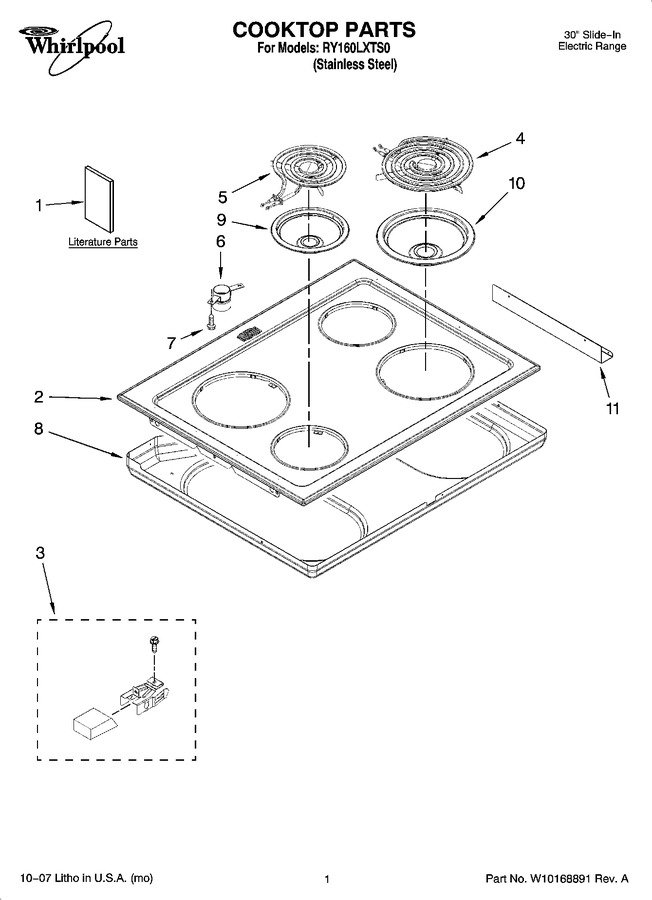

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10166918 | Wiring Diagram |
|
- | |||||
| 1 | W10165721 | Installation Instructions |
|
- | |||||
| 1 | W10165716 | Use & Care Guide |
|
- | |||||
| 2 | 2002M200-09 | Cooktop (black) (Replaces: 74011071) |
|
- | |||||
| 3 | 12001676 | Kit, Hardware |
|
Immediately | $ 28.45 | ||||
| 4 | WP9761346 | Element Rf/lr (2) 8`` (Replaces: 74007159) |
|
Immediately | $ 94.16 | ||||
| 5 | WPW10345407 | Element Lf/rr (2) 6`` (Replaces: 74007158) |
|
Immediately | $ 141.79 | ||||
| 6 | 74005759 | Tube, Vent Upper |
|
- | |||||
| 7 | WP7101P498-60 | Screw (4) (Replaces: 74003357) |
|
$ 6.74 | |||||
| 8 | 74006046 | Bottom, Burner Box |
|
- | |||||
| 9 | WPW10196406 | Bowl, Drip (chr 6``) (Replaces: 74001212) |
|
Immediately | $ 12.05 | ||||
| 10 | WPW10196405 | Bowl, Drip (chr 8``) (Replaces: 74001213) |
|
Immediately | $ 15.56 | ||||
| 11 | 3801F881-51 | Bracket, Burner Box (Replaces: 74010894) |
|
- |
