Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10282492 Rack, Oven (2)   (Replaces: 7801P054-60) In-Stock Immediately $ 65.15

2 WP3405F037-80 Drawer, Storage   (Replaces: 3405F033-80) Special Order $ 304.98

3 WP7101P072-60 Screw, Panel   (Replaces: 7101P072-60) Special Order $ 6.77

4 3801F887-51 Bracket, Drawer Special Order $ 8.32

5 7760P229-60 Panel, Dwr (ss) Appelez-nous -
6 W11233072 Screw, Panel   (Replaces: 7101P388-60) In-Stock Immediately $ 12.62

7 7103P190-60 Nut, Lock Appelez-nous -
8 2404F030-51 Lining, Drawer Appelez-nous -
9 WP74005546 Spacer, Rubber   (Replaces: 8010P130-60) Special Order $ 9.48

10 WP74004078 Roller, Drawer   (Replaces: 8014P022-60) In-Stock Immediately $ 10.70

11 7118P032-60 Shaft, Roller (2) Appelez-nous -
12 WP488130 Nut   (Replaces: 7103P082-60) Special Order $ 6.27

13 7701P535-60 Handle, Drawer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

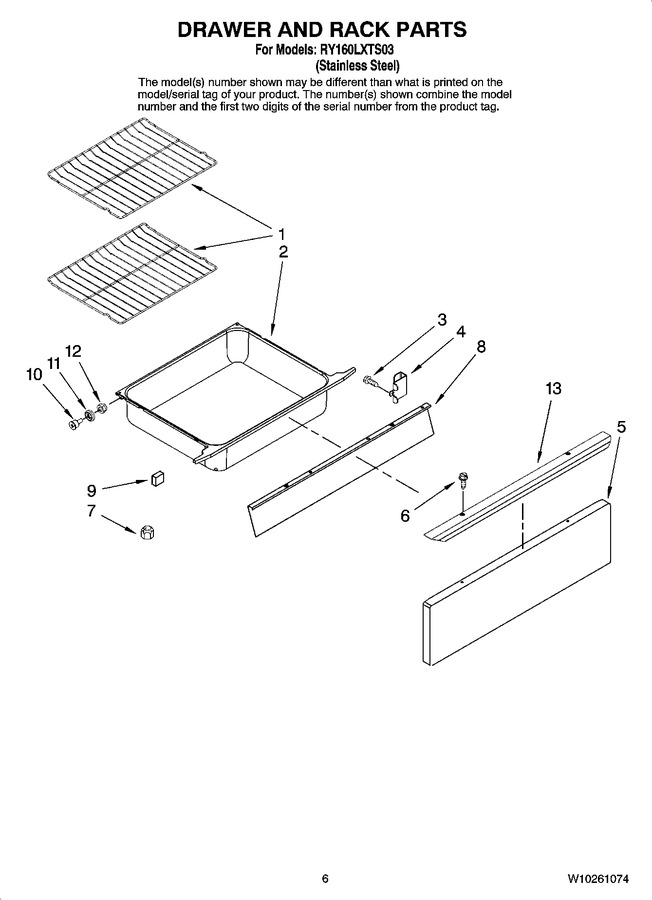

Diagram for RY160LXTS03
