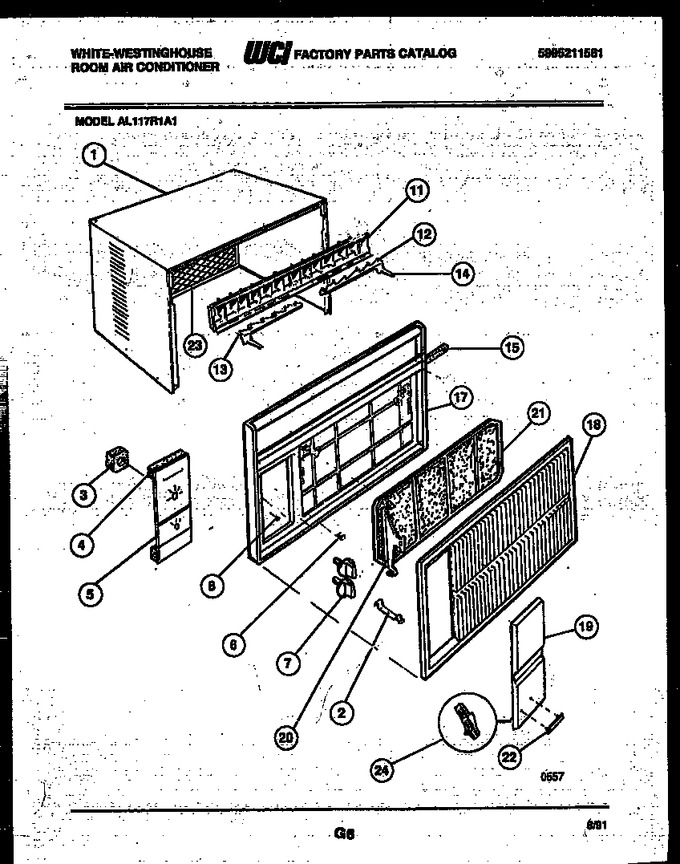

02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Unit Parts
06 - Compressor Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207184 | Shell-cabinet |
|
- | |||||
| 2 | 5308010914 | Clip-front To Base |
|
- | |||||
| 3 | 5303001775 | Spacer - Dial Plate |
|
- | |||||
| 4 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 5 | 5303281286 | Dial Plate |
|
- | |||||
| 6 | 5303002189 | Knob-slide |
|
- | |||||
| 7 | 5300331902 | Knob Control |
|
- | |||||
| 8 | 5308008175 | Screw-front Mtg. |
|
- | |||||
| 11 | 5303002458 | Louver-vert & Link Assy |
|
- | |||||
| 12 | 5303002164 | Link Vertical Louver Rh |
|
- | |||||
| 13 | 5303002165 | Link Vertical Louver Lh |
|
- | |||||
| 14 | 5303001844 | Spring Clip-link Detent |
|
- | |||||
| 15 | 5300301157 | Seal-mullion |
|
- | |||||
| 17 | 3203595 | Front Complete |
|
- | |||||
| 18 | 5303210352 | Panel-front |
|
- | |||||
| 19 | 5303201748 | Door-front |
|
- | |||||
| 20 | 5308017294 | Track - Filter |
|
- | |||||
| 21 | 5303016859 | Filter |
|
- | |||||
| 22 | 5300138101 | Nameplate |
|
- | |||||
| 23 | 5303208912 | Grille Rear |
|
- | |||||
| 24 | 5303017980 | Hinge |
|
- | |||||
| 23A | 5303271448 | Nameplate-grille (non-illustrated) |
|
- |
