View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

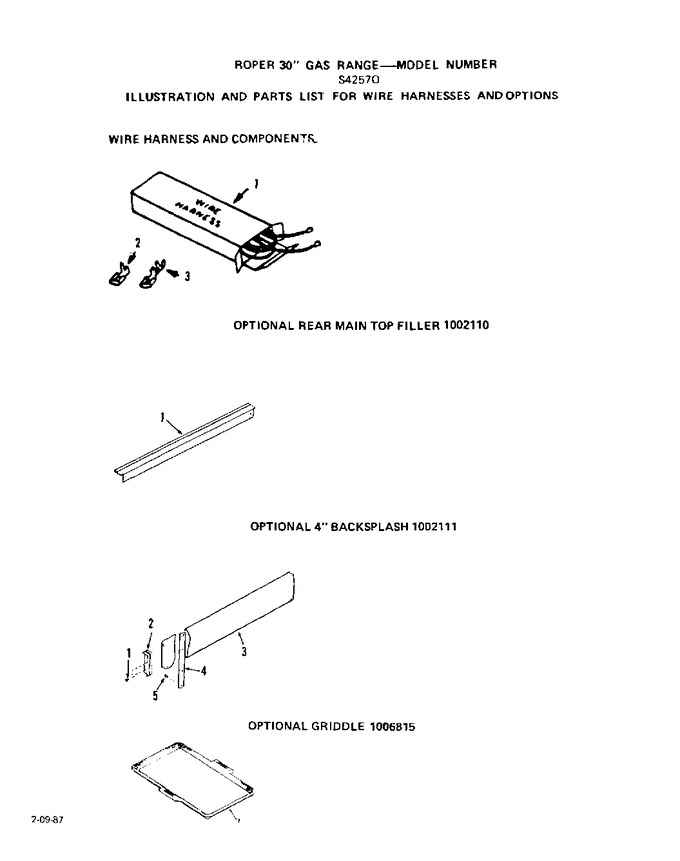

01 - Wire Harness , Rear Main Top Fille
02 - Main Top
03 - Body Section
04 - Burner
05 - Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 330394 | Set-on Griddle |
|
Immediately | $ 10.81 | ||||
| 1 | 331275 | Wire Harness (module) |
|
- | |||||
| 1 | 331261 | Wire Harness (oven Light) |
|
- | |||||
| 1 | 331228 | Filler-main Top Rear |
|
- | |||||
| 1 | 295268 | Screw Tc 6-32x3/8`` |
|
- | |||||
| 1 | 331174 | Wire Harness (switch-gas Valve) |
|
- | |||||
| 2 | 330339 | End Cap |
|
- | |||||
| 2 | 238389 | Flag Terminal 1/4`` |
|
- | |||||
| 3 | 238393 | Faston Terminal (1/4``) |
|
- | |||||
| 3 | 331387 | Backsplash |
|
- | |||||
| 3 | 238392 | Faston Terminal (3/16``) |
|
- | |||||
| 4 | 330331 | Backplash Support |
|
- | |||||
| 5 | 327320 | Screw St 10-16x7/16`` |
|
- | |||||
| 331267 | Xinstructions Installation |
|
- | ||||||
| 331389 | Xsheet Instruction |
|
- | ||||||
| 327320 | Xscrew St 10-16x7/16`` |
|
- |
