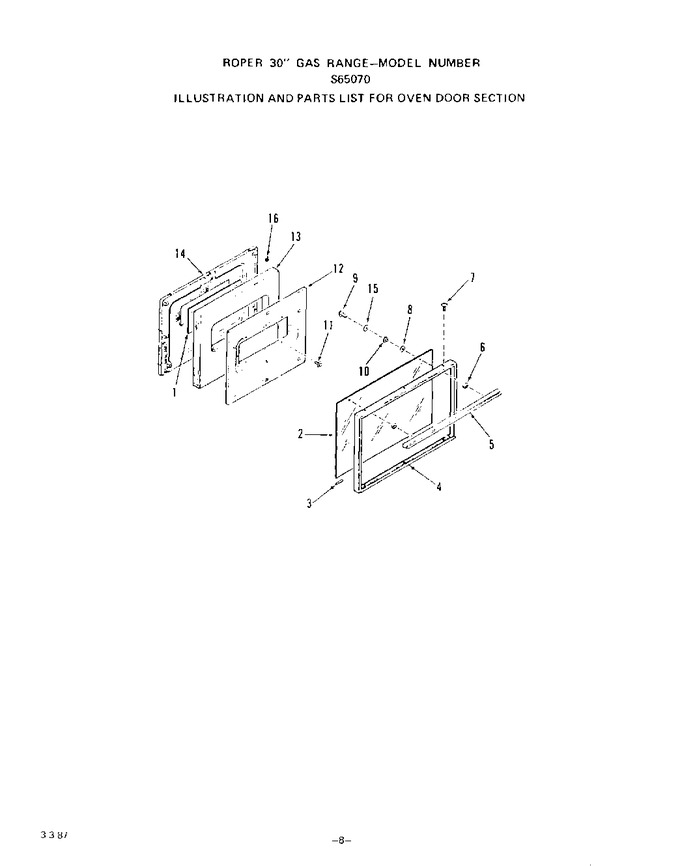

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 326010 | Inner Glass-oven Door |
|
- | |||||
| 2 | 332067 | Outer Glass-oven Door |
|
- | |||||
| 3 | 112370 | Cushion-oven Door (3 Req) |
|
- | |||||
| 4 | 332066 | Frame-oven Door |
|
- | |||||
| 5 | 332452 | Handle-oven Door |
|
- | |||||
| 6 | DE81-05147A | Spacer, Door Handle (Replaces: 107158) |
|
$ 205.79 | |||||
| 7 | 331704 | Screw 10-32x1/2`` |
|
- | |||||
| 8 | 333014 | Washer |
|
- | |||||
| 9 | 300864 | Screw 8-32x1/2`` |
|
- | |||||
| 10 | 333015 | Spacer-glass |
|
- | |||||
| 11 | 104520 | Screw 10-32 X 17/32`` |
|
- | |||||
| 12 | 325996 | Retainer-oven Door Insulation |
|
- | |||||
| 13 | 325999 | Insulation-oven Door |
|
- | |||||
| 14 | 331580 | Lining-oven Door |
|
- | |||||
| 15 | 99279 | Washer |
|
- | |||||
| 16 | 335945 | Washer-felt |
|
- |
