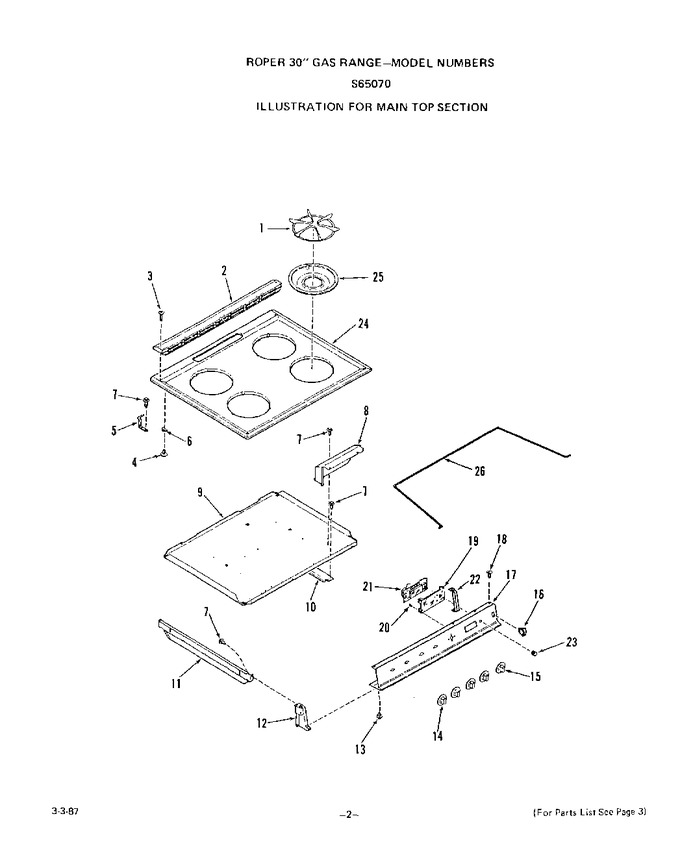

SELECT A DIAGRAM

01 - Wire Harness And Components , 4`` B


02 - Main Top


03 - Body


04 - Burner


05 - Oven Door


06 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	330242		Top Grate		Appelez-nous	-
2	330738		Cover-vent		Appelez-nous	-
3	332285		Screw 6-32		Appelez-nous	-
4	286628		Screw 10-32x5/16``		Appelez-nous	-
5	332346		Left		Appelez-nous	-
5	332345		Right		Appelez-nous	-
6	335161		Bracket-hinge		Appelez-nous	-
7	327320		Screw 10-16x7/16``		Appelez-nous	-
8	330975		Cover-wire		Appelez-nous	-
9	330386		Burner Box Bottom		Appelez-nous	-
10	330558		Stiffener-burner Box Bottom		Appelez-nous	-
11	336365		Extension-burner Box Side		Appelez-nous	-
12	330344		Left		Appelez-nous	-
12	330345		Right		Appelez-nous	-
13	316849		Screw 10-32		Appelez-nous	-
14	336366		Knob-gas Valve (4 Req)		Appelez-nous	-
15	336368		Knob-thermostat		Appelez-nous	-
16	334649		Switch-oven Light		Appelez-nous	-
17	336352		Manifold Panel		Appelez-nous	-
19	336943		Lens		Appelez-nous	-
20	78153		Screw 6-32x5/16``		Appelez-nous	-
21	335616		Clock Asm		Appelez-nous	-
22	336354		Bracket-clock		Appelez-nous	-
23	334961		Knob-clock		Appelez-nous	-
24	336360		Main Top		Appelez-nous	-
25	336363		Aeration Pan (4 Req)		Appelez-nous	-
26	336079		Support Rod-main Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
