Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 700141 Screw Appelez-nous -
1 W11233072 Screw   (Replaces: Y707347) In-Stock Immediately $ 12.62

2 700458 Outer Door Glass In-Stock Immediately $ 13.02

3 Y700442 Door Handle Appelez-nous -
4 715939 Bushing Appelez-nous -
5 W11164114 Screw 1   (Replaces: Y708312) Special Order $ 3.76

6 Y700446 Washer Special Order $ 5.27

7 Y700444 Mounting Pad Appelez-nous -
8 DE81-02991A Oven Door Liner   (Replaces: 700015) Special Order $ 29.11

8 715938 Pad, Spacer Appelez-nous -
9 715485 Screw Appelez-nous -
10 715838 Bracket Appelez-nous -
11 715316 Door Insulation Appelez-nous -
12 715368 Oven Door Seal Appelez-nous -
13 788143 No Longer Available Appelez-nous -

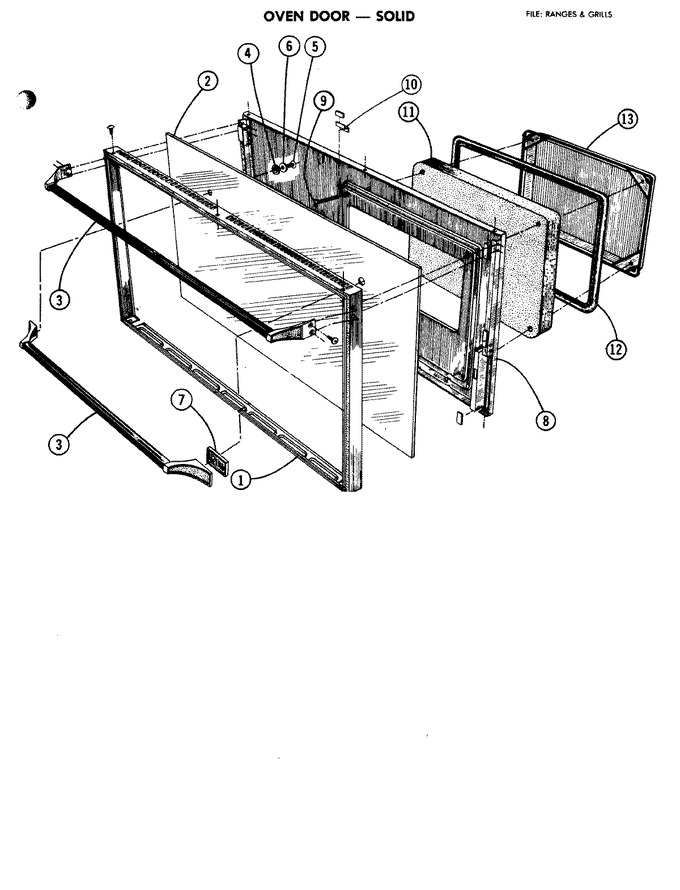

    View Diagram in Separate Window     Print Icon   Print Part List
