02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

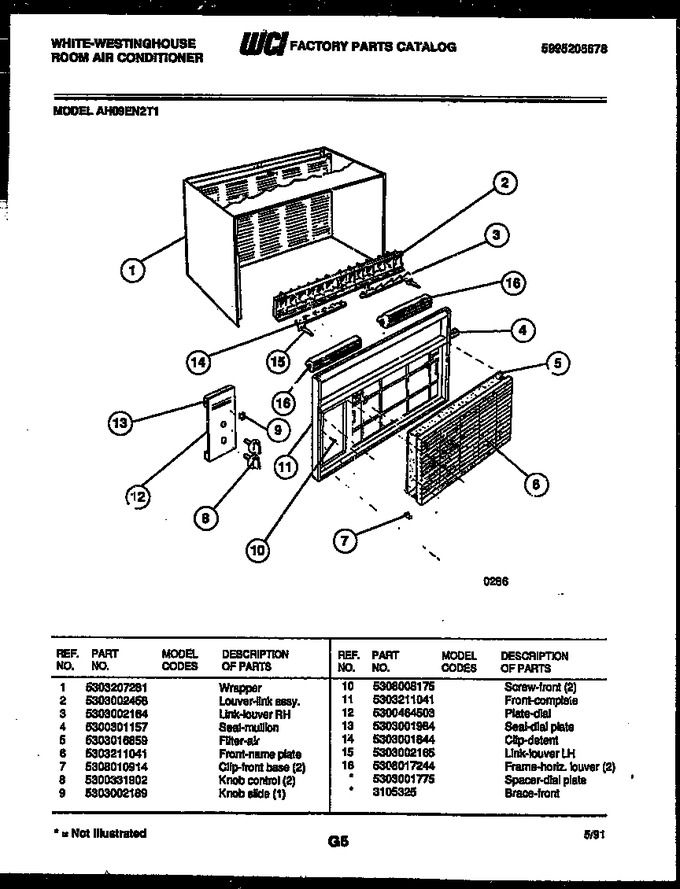

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207184 | Sleeve |
|
- | |||||
| 2 | 5303202806 | Front-complete |
|
- | |||||
| 3 | 5300454703 | Panel-front |
|
- | |||||
| 4 | 5300462201 | Filter-air |
|
- | |||||
| 5 | 5308017244 | Frame-horiz Louver |
|
- | |||||
| 6 | 5303002458 | Vert. Louver & Link Assy. |
|
- | |||||
| 7 | 5303002164 | Link - Vert Louver Rh |
|
- | |||||
| 8 | 5303002165 | Link - Vert Louver Lh |
|
- | |||||
| 9 | 5303001844 | Clip-link Detent |
|
- | |||||
| 10 | 5303201645 | Door-front |
|
- | |||||
| 11 | 5303017980 | Hinge - Door |
|
- | |||||
| 12 | 5300344902 | Trim-front |
|
- | |||||
| 13 | 5300301157 | Seal-mullion |
|
- | |||||
| 14 | 3205735 | Plate - Dial |
|
- | |||||
| 15 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 16 | 5308016116 | Knob-cntrl Push Button |
|
- | |||||
| 17 | 5303002189 | Knob-slide |
|
- | |||||
| 18 | 5308008175 | Screw-front |
|
- | |||||
| 19 | 5308010914 | Clip-front To Base |
|
- | |||||
| 20 | 5308017143 | Knob Push Button Filter |
|
- | |||||
| 14A | 5308016088 | Spacer-dial Plate (non-illustrated) |
|
- | |||||
| 19A | 3015325 | Front Base (non-illustrated) |
|
- | |||||
| 3A | 5300346201 | Track-filter (non-illustrated) |
|
- |
