SELECT A DIAGRAM

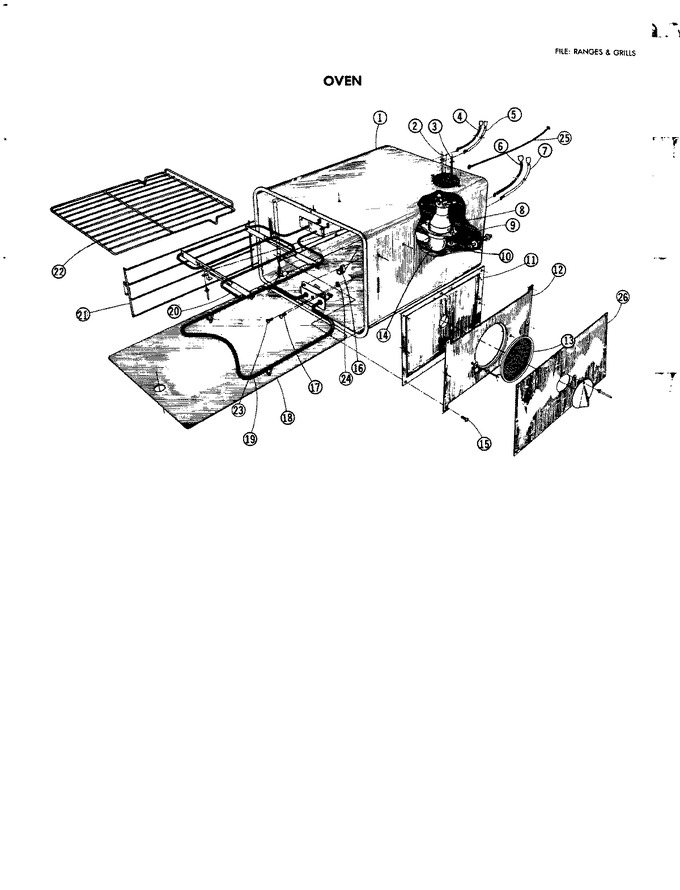

01 - Basic Body
02 - Blower Assembly/plenum
03 - Control Panel
04 - Oven
05 - Oven Door-see Thru Black Glass
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y708585 | Support Bracket |
|
- | |||||
| 1 | 770455 | Oven Assembly |
|
- | |||||
| 1 | 715294 | Nut, Tee |
|
- | |||||
| 1 | 715295 | Washer |
|
- | |||||
| 1 | 715777 | Spacer |
|
- | |||||
| 1 | WP210720 | Rivet (Replaces: Y708088) |
|
$ 12.14 | |||||
| 1 | 770458 | Oven Bolt |
|
- | |||||
| 1 | 715617 | Washer (teflon) |
|
- | |||||
| 1 | 715488 | Filter Retainer Clip |
|
- | |||||
| 2 | 715519 | Wire, White |
|
- | |||||
| 3 | 715519 | Wire, White |
|
- | |||||
| 4 | 715518 | Wire, Black |
|
- | |||||
| 5 | 715516 | Wire, Red |
|
- | |||||
| 6 | 715517 | Wire, Yellow |
|
- | |||||
| 7 | 715544 | Wire, Brown |
|
- | |||||
| 8 | 715515 | Wire, Blue |
|
- | |||||
| 9 | 715281 | Receptacle, Light |
|
- | |||||
| 10 | W11772394 | Screw (Replaces: 715790) |
|
Immediately | $ 10.94 | ||||
| 10 | 715295 | Washer |
|
- | |||||
| 11 | COMM PART | Blower Housing Assembly (Replaces: 700137) |
|
- | |||||
| 11 | WP210720 | Rivet (Replaces: Y708088) |
|
$ 12.14 | |||||
| 11 | 715614 | Splitter |
|
- | |||||
| 12 | 715617 | Washer (teflon) |
|
- | |||||
| 12 | 715488 | Filter Retainer Clip |
|
- | |||||
| 12 | WP210720 | Rivet (Replaces: Y708088) |
|
$ 12.14 | |||||
| 12 | 770456 | Control Panel Assembly |
|
- | |||||
| 13 | 715526 | Convective Filter |
|
$ 34.73 | |||||
| 14 | 8009 | Bulb, Oven (40 Watt Brass) (Replaces: Y707319) |
|
Immediately | $ 16.80 | ||||
| 15 | 707116 | Screw |
|
- | |||||
| 16 | WP7112P004-60 | Thermostat Bulb Clip (Replaces: Y707324) |
|
Immediately | $ 11.07 | ||||
| 16 | WP7112P004-60 | Clip (Replaces: Y715869) |
|
Immediately | $ 11.07 | ||||
| 17 | WP179051 | Screw (Replaces: 708764) |
|
Immediately | $ 7.16 | ||||
| 18 | 715279 | Oven Bottom |
|
- | |||||
| 19 | WP715269 | Element, Bake (Replaces: 715269) |
|
$ 104.81 | |||||
| 20 | 715416 | Element, Broil |
|
- | |||||
| 21 | 715424 | Rack Support |
|
- | |||||
| 22 | 715276 | Oven Rack |
|
- | |||||
| 23 | Y707150 | Screw |
|
- | |||||
| 24 | M0282005 | Nut,no.6-32 Hex (Replaces: Y707149) |
|
$ 7.07 | |||||
| 25 | 715733 | Wire, Green |
|
- | |||||
| 26 | 715532 | Insulation Wrap |
|
- | |||||
| 26 | 715533 | Insulation Back |
|
- | |||||
| 27 | 4396923 | Pan, Broil (Replaces: 708810) |
|
Immediately | $ 52.04 | ||||
| 28 | 4396923 | Rack, Broil Pan (Replaces: Y708811) |
|
Immediately | $ 52.04 |
