SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section


04 - Section

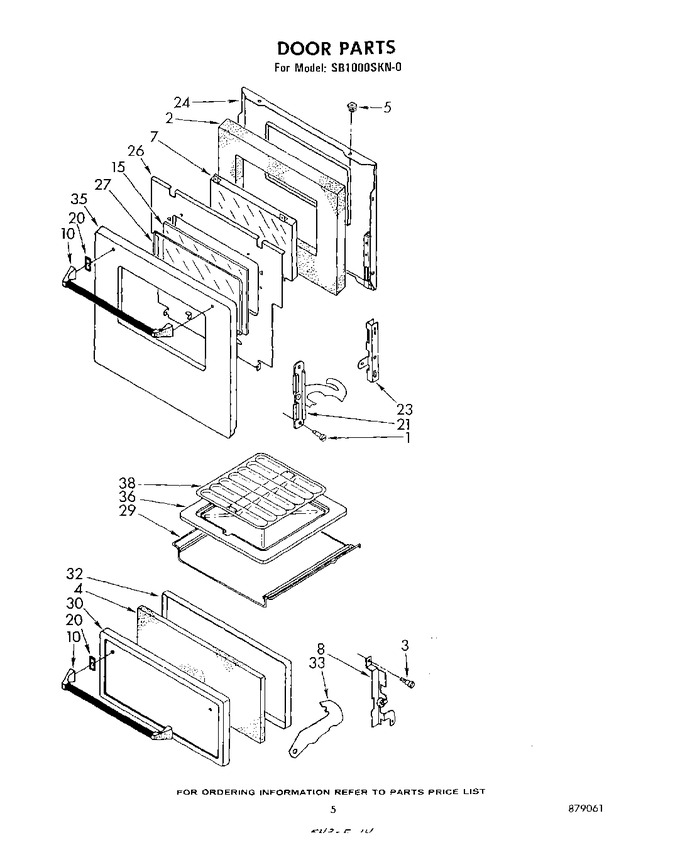

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	878080		Bolt, Shoulder 10-24 X 7/16 (2)		Appelez-nous	-
2	WPW10208653		Insulation, Oven Door   (Replaces: 878978)			Immediately	$ 49.92
3	878079		Bolt, Shoulder 10-24 X 7/16		Appelez-nous	-
4	878306		Insulation, Broiler Door		Appelez-nous	-
5	878095		Nut, Expansion (8)		Appelez-nous	-
7	878558		Glass, Oven Door Package		Appelez-nous	-
8	878760		Support, Broiler Door Hinge (right Side)		Appelez-nous	-
8	878759		Support, Broiler Door Hinge (left Side)		Appelez-nous	-
10	879046		Handle Door (oven & Broiler)		Appelez-nous	-
15	878557		Glass, Oven Door Outside		Appelez-nous	-
20	879047		Spacer, Door Handle (2)		Appelez-nous	-
21	878167		Hinge, Oven Door (2)		Appelez-nous	-
23	878168		Support, Oven Door (left Side)		Appelez-nous	-
23	878169		Support, Oven Door (right Side)		Appelez-nous	-
24	879049		Lining, Oven Door		Appelez-nous	-
26	879050		Baffle, Door		Appelez-nous	-
27	878556		Bezel, Oven Door		Appelez-nous	-
29	878764		Rack, Broiler Pan		Appelez-nous	-
30	879051		Panel, Broiler Door		Appelez-nous	-
32	878768		Lining, Broiler Door		Appelez-nous	-
33	878933		Hinge, Broiler Door (2)		Appelez-nous	-
35	879048		Panel, Oven Door (almond)		Appelez-nous	-
36	878173		Pan, Broiler		Appelez-nous	-
38	878174		Tray, Broiler Pan		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
