SELECT A DIAGRAM
01 - Section
02 - Burner Box

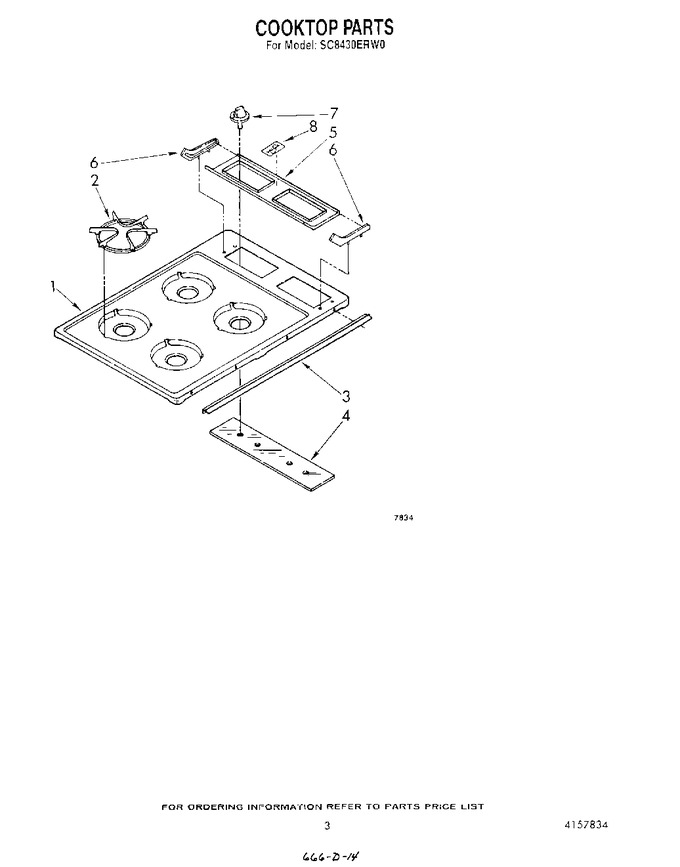

03 - Cooktop
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4157534 | Cooktop (white) |
|
- | |||||
| 1 | 4157535 | Cooktop (almond) |
|
- | |||||
| 1 | 4157840 | Cooktop (toast) |
|
- | |||||
| 1 | 4157841 | Cooktop (patinum) |
|
- | |||||
| 1 | 4157842 | Cooktop (brush Chrome) |
|
- | |||||
| 1 | 4179265 | Cooktop (black) |
|
- | |||||
| 2 | 4157581 | Grate (4) |
|
- | |||||
| 3 | 4157588 | Handle |
|
- | |||||
| 4 | 4157516 | Glass, Control Panel |
|
- | |||||
| 5 | 4157585 | Panel, Control |
|
- | |||||
| 6 | 4157586 | Endcap (rear) |
|
- | |||||
| 6 | 4157587 | Endcap (front) |
|
- | |||||
| 7 | 4179178 | Knob (4) |
|
- | |||||
| 8 | 4179125 | Nameplate |
|
- |
