SELECT A DIAGRAM

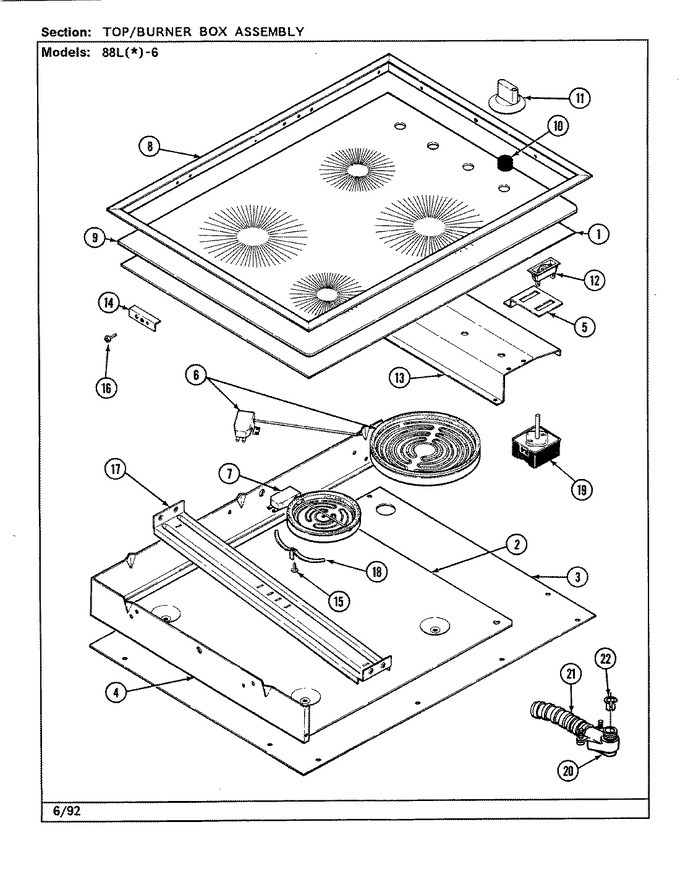

01 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3601F164-80		Baffle, Ceramic Top	01	Appelez-nous	-
2	3601F173-51		Baffle, Heat----na	01	Appelez-nous	-
3	4011F136-45		Bottom, Burner Box	01	Appelez-nous	-
4	4016F023-45		Bottom, Burner Box-sides	01	Appelez-nous	-
5	3801F188-45		Bracket, Light Indicator	01	Appelez-nous	-
6	W10823707		Element W/receptacle (8``)   (Replaces: 7406P073-60)	01		Immediately	$ 316.13
7	W10823704		Element W/receptacle (6``)   (Replaces: 7406P074-60)	01		Immediately	$ 309.01
8	7746P029-60		Frame, Main Top	01	Appelez-nous	-
9	7719P068-60		Nameplate, Magic Chef (wht)	01	Appelez-nous	-
9	7918P039-60		Glass Main Top	01	Appelez-nous	-
10	8008P033-60		Grommet	01	Appelez-nous	-
11	7737P029-60		Knob, Switch	01			$ 18.07
12	7407P074-60		Light, Indicator (hot Surface)	01	Appelez-nous	-
13	WP7101P072-60		Screw   (Replaces: 7101P072-60)	01			$ 6.77
13	M0282009		Nut 10-24   (Replaces: 7103P071-60)	01			$ 12.06
13	3605F175-45		Plate, Switch Mtg	01	Appelez-nous	-
14	3804F092-45		Retainer, Main Top Glass	01	Appelez-nous	-
15	WP74004005		Screw   (Replaces: 7101P076-60)	01			$ 6.95
16	WP7101P126-60		Screw   (Replaces: 7101P059-60)	01		Immediately	$ 6.85
17	3807F326-80		Support, Ceramic Element	01	Appelez-nous	-
18	8004P015-60		Support, Element	01	Appelez-nous	-
19	7403P266-60		Switch, Infinite (1400w)	01	Appelez-nous	-
19	7403P267-60		Switch, Infinite (2400w)	01	Appelez-nous	-
20	7417P004-60		Connector, Right Ang	01	Appelez-nous	-
21	3414F035-44		Tubing, Conduit (flexible)	01	Appelez-nous	-
22	8018P001-60		Sleeve, Tube	01	Appelez-nous	-
23	3801F072-45		Bracket, Conduit	01	Appelez-nous	-
23	CERAMABRYTE		Cleaner, Elco   (Replaces: 8308P002-60)	01		Immediately	$ 9.95
23	WA906B		Scraper, Razor   (Replaces: 8312P001-60)	01		Immediately	$ 4.86

    View Diagram in Separate Window       Print Part List
