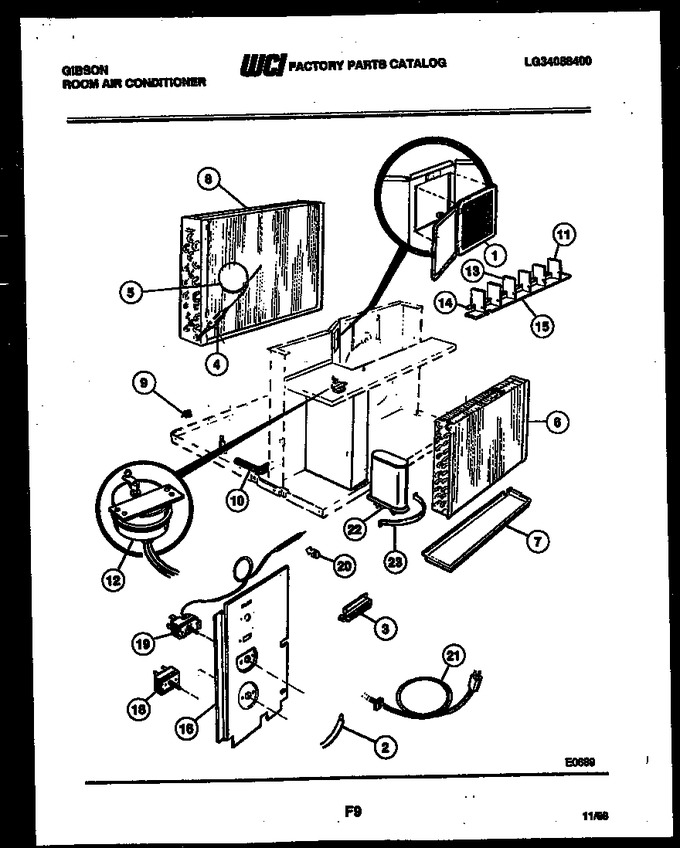

02 - Cabinet Parts
03 - Air Handling Parts
04 - Electrical Parts
05 - Compressor Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3012455 | Door-vent |
|
- | |||||
| 2 | 3002132 | Cable - Vent Door |
|
- | |||||
| 3 | 3201422 | Bracket-actuator |
|
- | |||||
| 4 | 08004930 | Strainer |
|
- | |||||
| 5 | 3001746 | Tube-capillary (cut To 40``) |
|
- | |||||
| 6 | 3002279 | Evaporator |
|
- | |||||
| 7 | 3002332 | Tray-evaporator |
|
- | |||||
| 8 | 3002243 | Condenser |
|
- | |||||
| 9 | 08002941 | Clip |
|
- | |||||
| 10 | 3001759 | Tube-drain |
|
- | |||||
| 11 | G158417 | Louver And Link Assy |
|
- | |||||
| 12 | 3017538 | Motor-louver Assy |
|
- | |||||
| 13 | 3002431 | Louver |
|
- | |||||
| 14 | 3001835 | Link-drive |
|
- | |||||
| 15 | 3001834 | Link-connecting |
|
- | |||||
| 16 | 3018544 | Panel-control |
|
- | |||||
| 18 | 3017344 | Switch - Selector |
|
$ 166.42 | |||||
| 19 | 3002079 | Control |
|
- | |||||
| 20 | WA310003 | Clip-retaining Bulb |
|
- | |||||
| 21 | 3002367 | Cord-service |
|
- | |||||
| 22 | 3019026 | Capacitor-dual |
|
- | |||||
| 23 | 3001770 | Strap-capacitor |
|
- | |||||
| *13474 | 3017342 | Screw - Actuator |
|
- | |||||
| *13474 | 3018414 | Underlay-tray |
|
- | |||||
| 16A | 3015318 | Switch-slide (non-illustrated) |
|
- | |||||
| 16B | 3001773 | Spacer-slide Switch (non-illustrated) |
|
- | |||||
| 19A | 3002600 | Sleeve-control Tube (non-illustrated) |
|
- | |||||
| 3A | 3002127 | Arm-actuator (non-illustrated) |
|
- | |||||
| 9A | 3014757 | Grommet-base Drain (non-illustrated) |
|
- |
