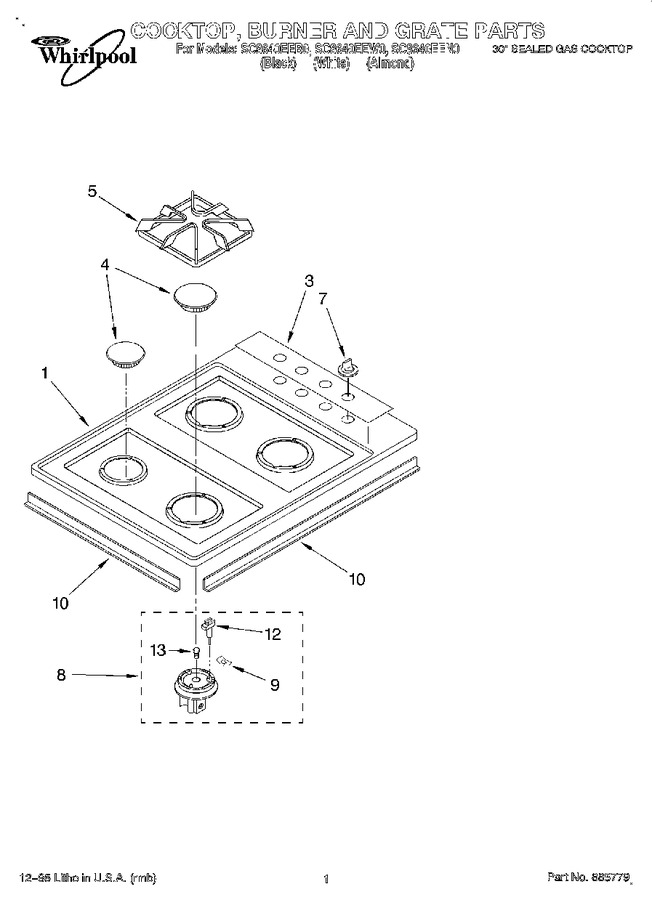

01 - Cooktop, Burner And Grate
02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3184491 | Cooktop (white) |
|
- | |||||
| 1 | 3184490 | Cooktop (almond) |
|
- | |||||
| 1 | 3184489 | Cooktop (black) |
|
- | |||||
| 3 | 3149333 | Panel, Control (black) |
|
$ 5.33 | |||||
| 3 | 3188400 | Panel, Control (almond) |
|
- | |||||
| 3 | 3188399 | Panel, Control (screw) (white) |
|
- | |||||
| 3 | 3188806 | Panel, Control (black) |
|
- | |||||
| 3 | 3188808 | Panel, Control (white) |
|
- | |||||
| 3 | 3188807 | Panel, Control (almond Screw (2)) |
|
- | |||||
| 4 | 3189855 | Cap, Burner (large (3)) |
|
- | |||||
| 4 | 3189853 | Cap, Burner (small (1)) |
|
- | |||||
| 5 | 3189736 | Grate (4) |
|
- | |||||
| 7 | W10861812 | Knob, Control (4) (white) (Replaces: 3187766) |
|
$ 13.86 | |||||
| 7 | WP3187767 | Knob, Control (4) (black) (Replaces: 3187767) |
|
$ 11.93 | |||||
| 7 | 3187768 | Knob, Control (4) (almond) |
|
- | |||||
| 8 | 3189021 | Burner Assembly (screw) |
|
- | |||||
| 8 | 3188799 | Burner Assembly (small (1)) |
|
- | |||||
| 8 | 3188798 | Burner Assembly (large (3)) |
|
- | |||||
| 9 | 3185805 | Nut, Speed |
|
- | |||||
| 10 | 3188316 | Seal, Foam (2) (right & Left Side) |
|
- | |||||
| 10 | 3189208 | Seal, Foam (2) (front & Back Side) |
|
- | |||||
| 12 | 3185804 | Electrode |
|
$ 27.18 | |||||
| 13 | 3179589 | Wire, Tie |
|
- | |||||
| 13 | 3188863 | Harness, Wire Light Switch |
|
- | |||||
| 13 | 3185948 | Orifice (large (3) No.52) |
|
- | |||||
| 13 | 3185947 | Orifice (small (1) No.56) |
|
- | |||||
| 13 | 3188862 | Harness, Wire Ignitor |
|
- |
