SELECT A DIAGRAM

01 - Cabinet


02 - Door

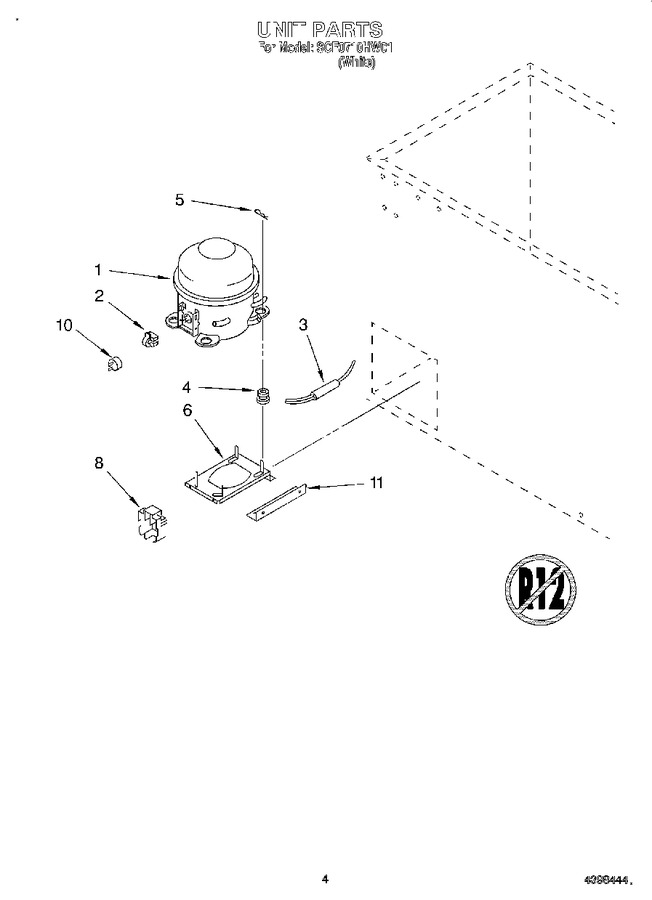

03 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4356715		Compressor (includes Items 2, 3, 4, 5, 8 & 9)		Appelez-nous	-
2	4356716		Relay				$ 96.72
3	4001		Drier   (Replaces: 4356675)			Immediately	$ 9.64
4	4356335		Grommet, Mounting Compressor		Appelez-nous	-
5	4356336		Clip, Hitch Pin		Appelez-nous	-
6	4356590		Base, Compressor		Appelez-nous	-
8	WP2162358		Cover   (Replaces: 4356599)				$ 81.68
10	2264602		Overload   (Replaces: 4356717)				$ 140.02
11	3-81556-001		Brace   (Replaces: 4356672)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
