SELECT A DIAGRAM
01 - Cabinet
02 - Door Parts

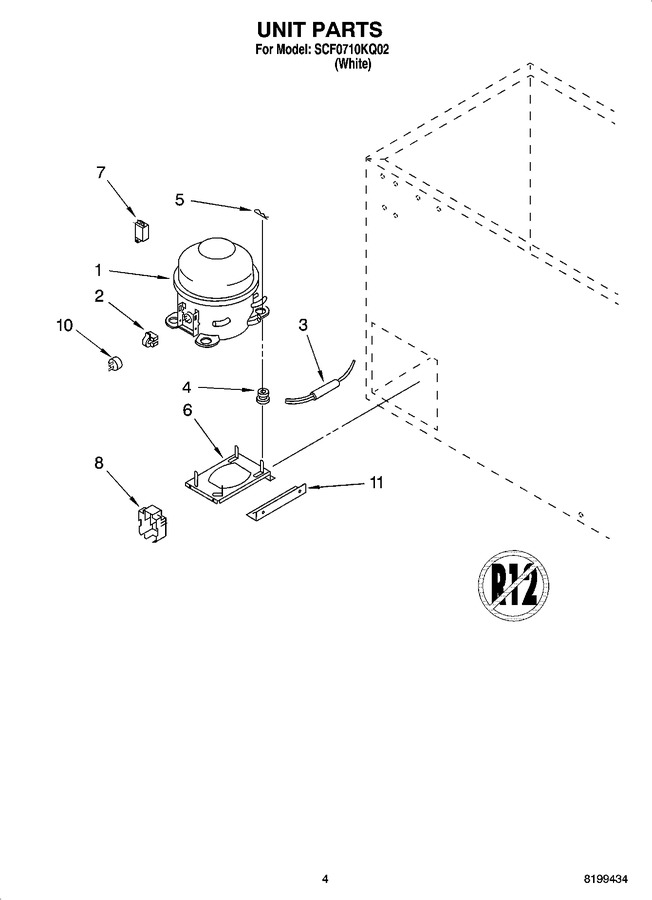

03 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10237328 | Compressor (includes Items 2, 3, 4 & 8) (Replaces: 8210240) |
|
$ 532.85 | |||||
| 2 | 4356738 | Relay |
|
$ 53.17 | |||||
| 3 | 4001 | Drier (Replaces: 4357299) |
|
Immediately | $ 9.64 | ||||
| 4 | 4356335 | Grommet, Mounting Compressor |
|
- | |||||
| 5 | 4356336 | Clip, Hitch Pin |
|
- | |||||
| 6 | 4356590 | Compressor, Base |
|
- | |||||
| 7 | 8210308 | Capacitor |
|
$ 94.77 | |||||
| 8 | 8210242 | Cover |
|
- | |||||
| 10 | 8210241 | Overload |
|
$ 88.68 | |||||
| 11 | 3-81556-001 | Brace (Replaces: 4356672) |
|
- |
