SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Unit

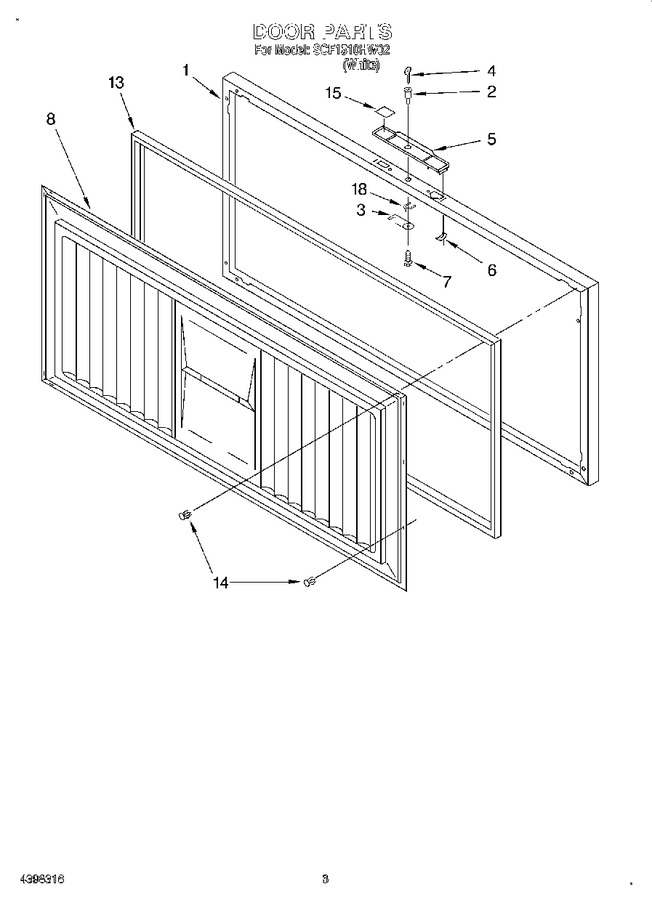

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4356658		Exterior Door Panel (includes Insulation)		Appelez-nous	-
2	3-35284-001		Lock   (Replaces: 4356691)				$ 24.42
3	2-35195-002		Hook Bolt, Lock   (Replaces: 4356608)				$ 57.10
4	4356304		Key		Appelez-nous	-
5	4356657		Handle				$ 110.02
6	4356306		Clip, Oblong				$ 7.36
7	W11233072		Screw   (Replaces: 4356609)			Immediately	$ 12.62
8	4356536		Interior, Door Panel		Appelez-nous	-
13	WP4-35260-005		Gasket   (Replaces: 4356693)				$ 287.65
14	4356317		Gasket, Clip		Appelez-nous	-
15	4356727		Nameplate		Appelez-nous	-
18	4356493		Clip, Spring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
