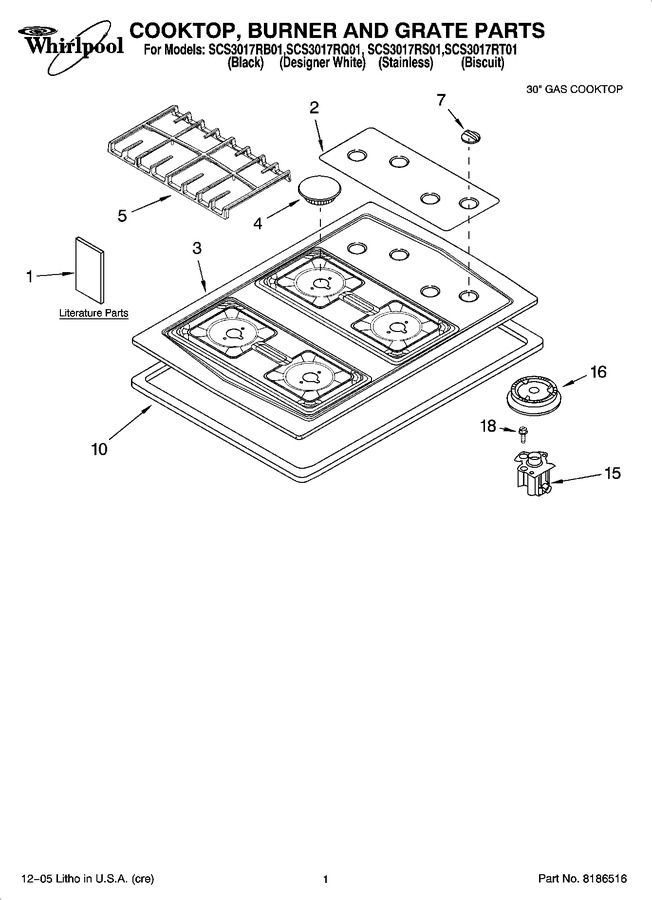

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3192098 | Wiring Diagram |
|
- | |||||
| 1 | 8286304 | Installation Instructions |
|
- | |||||
| 1 | 8286615 | Use & Care Guide |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips |
|
- | |||||
| 1 | 9759133 | Safecooking Tips |
|
- | |||||
| 1 | 8286620 | L.p. Conversion Instructions |
|
- | |||||
| 2 | 8286503 | Panel, Control (white) |
|
- | |||||
| 2 | WP8286502 | Panel, Control (black) (Replaces: 8286502) |
|
$ 127.00 | |||||
| 2 | 8286504 | Panel, Control (biscuit) |
|
- | |||||
| 3 | WP3191243 | Cooktop (white) (Replaces: 3191243) |
|
$ 279.93 | |||||
| 3 | WP3191242 | Cooktop (black) (Replaces: 3191242) |
|
$ 270.94 | |||||
| 3 | 8284705 | Cooktop (biscuit) |
|
- | |||||
| 3 | W11230936 | Cooktop (stainless) (Replaces: 3191288) |
|
$ 377.15 | |||||
| 4 | WP8286153CB | Cap, Burner 6k (1) Coal Matte Black (Replaces: 8286153CB) |
|
$ 61.97 | |||||
| 4 | WP8286153CG | Cap, Burner 6k (1) Cumberland Gray (Replaces: 8286153CG) |
|
$ 72.00 | |||||
| 4 | 8286153EP | Cap, Burner 6k (1) Espresso |
|
- | |||||
| 4 | WP8286154CB | Cap, Burner 9.5k (1) Coal Matte Black (Replaces: 8286154CB) |
|
$ 77.94 | |||||
| 4 | WP8286154CG | Cap, Burner 9.5k (1) Cumberland Gray (Replaces: 8286154CG) |
|
$ 86.04 | |||||
| 4 | 8286154EP | Cap, Burner 9.5k (1) Espresso |
|
- | |||||
| 4 | WP8286155CB | Cap, Burner 12.5k (2) Coal Matte Black (Replaces: 8286155CB) |
|
$ 104.70 | |||||
| 4 | WP8286155CG | Cap, Burner 12.5k (2) Cumberland Gray (Replaces: 8286155CG) |
|
$ 89.27 | |||||
| 4 | 8286155EP | Cap, Burner 12.5k (2) Espresso |
|
- | |||||
| 5 | 8285888CB | Grate R.hand (coal Matte Black) |
|
- | |||||
| 5 | 8285886CB | Grate R.hand (coal Matte Black) |
|
- | |||||
| 5 | 8285888EP | Grate R.hand (espresso L.hand) |
|
- | |||||
| 5 | 8285888CG | Grate R.hand (cumberland Gray) |
|
- | |||||
| 5 | 8285886EP | Grate R.hand (espresso) |
|
- | |||||
| 5 | 8285886CG | Grate R.hand (cumberland Gray) |
|
- | |||||
| 7 | WP8286057WH | Knob, Control (4) (white) (Replaces: 8286057WH) |
|
$ 6.26 | |||||
| 7 | WP8286057BL | Knob, Control (4) (black) (Replaces: 8286057BL) |
|
$ 19.21 | |||||
| 7 | 8286057BT | Knob, Control (4) (biscuit) |
|
- | |||||
| 10 | 3193090 | Seal, Foam (s.steel Mdl Only) |
|
- | |||||
| 15 | WPW10128451 | Holder, Orifice (includes 13 & 14) (rapid) (Replaces: 8286180) |
|
$ 99.80 | |||||
| 15 | WPW10128450 | Holder, Orifice (includes 13 & 14) (semi Rapid) (Replaces: 8286178) |
|
$ 106.59 | |||||
| 15 | 8286513 | Holder, Orifice (includes 13 & 14) (auxi) |
|
- | |||||
| 16 | WPW10406243 | Head, Burner (6k Auxi) (Replaces: 8286181) |
|
Immediately | $ 33.50 | ||||
| 16 | WPW10406797 | Head, Burner (12k Rapid) (Replaces: 8286182) |
|
$ 79.64 | |||||
| 16 | WPW10406283 | Head, Burner (9k Semi-rapid) (Replaces: 8286184) |
|
$ 66.87 | |||||
| 18 | 4456626 | Harness, Wire Ignitor 15`` |
|
$ 66.34 | |||||
| 18 | N/A | Following Parts Not Illustrated |
|
- | |||||
| 18 | 4456627 | Harness, Wire (ignitor 28``) |
|
$ 189.13 | |||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 |
