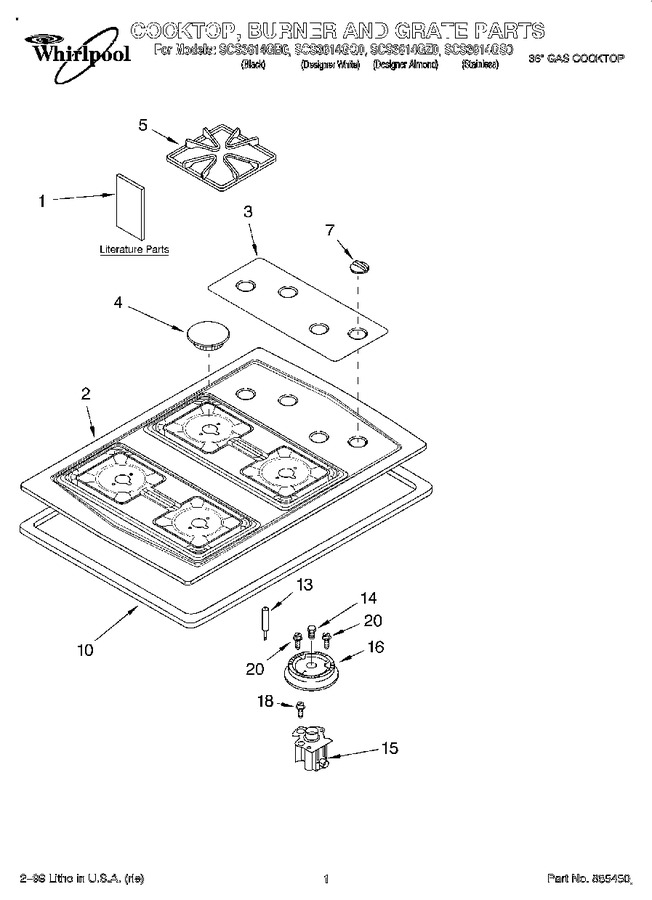

01 - Cooktop, Burner And Grate
02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT3192098 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT3191827 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT3191829 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | LIT3192244 | Literature Parts (insert Sheet Wiring Diagram) |
|
- | |||||
| 2 | 3191252 | Cooktop (black) |
|
- | |||||
| 2 | 3191289 | Cooktop (stainless) |
|
- | |||||
| 2 | 3191253 | Cooktop (white) |
|
- | |||||
| 2 | 3191254 | Cooktop (almond) |
|
- | |||||
| 3 | 3191283 | Panel, Control (black) |
|
- | |||||
| 3 | 3191285 | Panel, Control (almond) |
|
- | |||||
| 3 | 3191284 | Panel, Control (white) |
|
- | |||||
| 4 | WP3191905 | Cap, Burner (lf) (gray) (Replaces: 3191905) |
|
$ 77.99 | |||||
| 4 | WP3191904 | Cap, Burner (lf) (black) (Replaces: 3191904) |
|
$ 157.85 | |||||
| 4 | WP3191903 | Cap, Burner (rr, Lr) (gray) (Replaces: 3191903) |
|
$ 159.62 | |||||
| 4 | WP3191901 | Cap, Burner (rr, Lr) (black) (Replaces: 3191901) |
|
$ 106.83 | |||||
| 4 | 3191899 | Cap, Burner (rf) (gray) |
|
$ 31.21 | |||||
| 4 | WP3191898 | Cap, Burner (rf) (black) (Replaces: 3191898) |
|
$ 60.86 | |||||
| 5 | WPW10447925 | Grate (4) (gray) (Replaces: 8053455) |
|
Immediately | $ 256.76 | ||||
| 5 | WP8053456 | Grate (4) (black) (Replaces: 8053456) |
|
$ 181.76 | |||||
| 7 | WP3191328 | Knob, Control (4) (white) (Replaces: 3191329) |
|
Immediately | $ 20.09 | ||||
| 7 | WP3191328 | Knob, Control (4) (almond) (Replaces: 3191814) |
|
Immediately | $ 20.09 | ||||
| 7 | WP3191328 | Knob, Control (4) (black) (Replaces: 3191328) |
|
Immediately | $ 20.09 | ||||
| 10 | 3191936 | Seal, Foam |
|
- | |||||
| 13 | 3192527 | Ignitor |
|
- | |||||
| 14 | WP9753930 | Orifice (lf) (Replaces: 3192524) |
|
$ 80.19 | |||||
| 14 | WP3192523 | Orifice (lr, Rr) (Replaces: 3192523) |
|
$ 80.19 | |||||
| 14 | 3192528 | Orifice (rf) |
|
- | |||||
| 15 | 3191740 | Holder, Orifice (includes 13 & 14) (rf) |
|
- | |||||
| 15 | 3191742 | Holder, Orifice (includes 13 & 14) (lf) |
|
- | |||||
| 15 | 3191741 | Holder, Orifice (includes 13 & 14) (lr, Rr) |
|
- | |||||
| 16 | 9753109 | Head, Burner (rf) |
|
- | |||||
| 16 | 9753110 | Head, Burner (lf) |
|
- | |||||
| 16 | 9753187 | Head, Burner (lr, Rr) |
|
- | |||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 20 | 3192230 | 28`` 36`` |
|
- | |||||
| 20 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 6.42 | ||||
| 20 | 3192229 | 15`` |
|
- |
