01 - Cooktop, Burner And Grate Parts

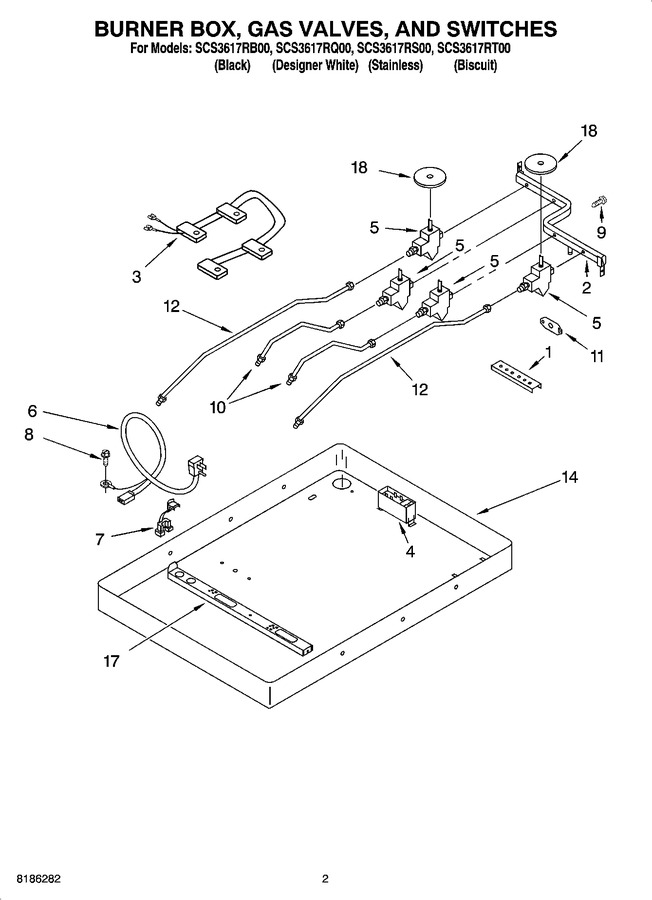

02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8186533 | Bracket, (2) Cooktop Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 1 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 2 | W10491985 | Screw (2) (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 2 | 9759354 | Pipe, Manifold |
|
$ 146.31 | |||||
| 3 | WP4456905 | Harness & Switches (Replaces: 4456905) |
|
Immediately | $ 176.83 | ||||
| 4 | WPW10110491 | Module, Spark (Replaces: 8522423) |
|
Immediately | $ 276.35 | ||||
| 4 | WP12990527 | Screw (Replaces: 3400843) |
|
Immediately | $ 7.15 | ||||
| 5 | 8286559 | Valve, Burner (auxi (white)) |
|
$ 123.31 | |||||
| 5 | 8286560 | Valve, Burner (rapid (purple)) |
|
$ 123.39 | |||||
| 5 | WP4456817 | Valve, Burner (large (black)) (Replaces: 4456817) |
|
$ 286.38 | |||||
| 6 | W10392007 | Power Cord (Replaces: 3192231) |
|
$ 96.25 | |||||
| 7 | 4173634 | Bushing, Cord |
|
$ 5.83 | |||||
| 8 | WP3177991 | Screw, Ground (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 9 | 3186217 | Bolt, Gas Valve |
|
$ 5.53 | |||||
| 10 | 3191322 | Tubing, Burner Rr & Rf |
|
- | |||||
| 11 | 3192491 | Bracket, Manifold |
|
- | |||||
| 12 | 3191322 | Tubing, Burner Lr & Lf |
|
- | |||||
| 14 | 3179776 | Screw |
|
- | |||||
| 14 | 4456781 | Box, Burner |
|
- | |||||
| 17 | W10203756 | Rail, Burner (2) (Replaces: 8286099) |
|
- | |||||
| 17 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 18 | 4455918 | Hardware Kit (mounting) |
|
- | |||||
| 18 | N/A | Following Parts Not Illustrated And Optional Parts Not Included |
|
- | |||||
| 18 | WP3188425 | Seal, (4) Switch Cover (Replaces: 3191387) |
|
$ 82.61 | |||||
| 18 | WP8286320 | Gas Conversion Kit (natural Gas To Lp Gas) (Replaces: 8286320) |
|
$ 115.78 |
