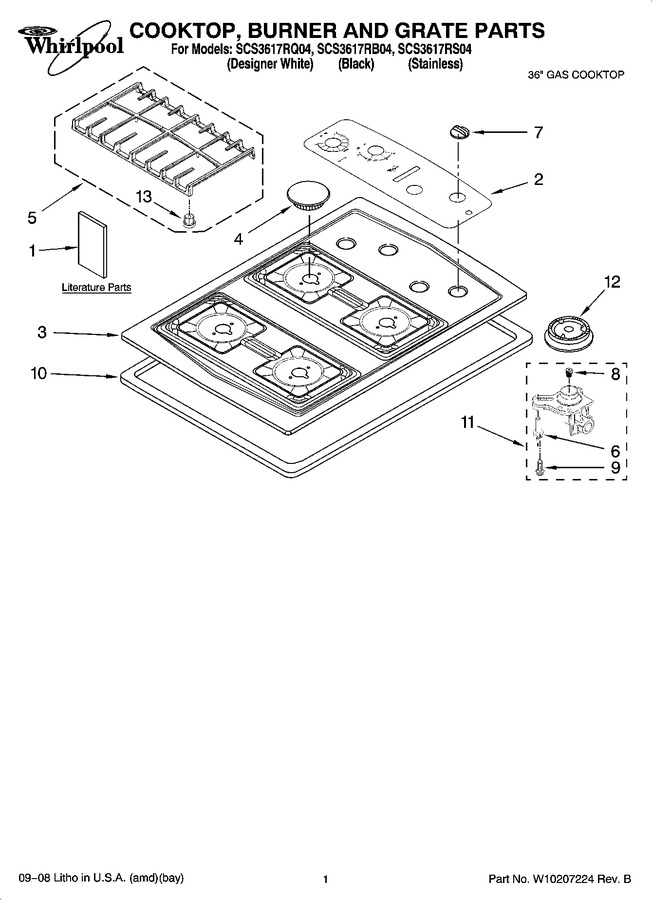

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10162190 | Use & Care Guide |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | 9759133 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | 3192098 | Wiring Diagram |
|
- | |||||
| 1 | W10131955 | Installation Instructions |
|
- | |||||
| 1 | 8286620 | Conversion Instructions |
|
- | |||||
| 2 | 8286503 | Panel, Control (white) |
|
- | |||||
| 2 | WP8286502 | Panel, Control (black) (Replaces: 8286502) |
|
$ 127.00 | |||||
| 3 | 3191252 | Cooktop (black) |
|
- | |||||
| 3 | W10157844 | Cooktop (stainless) |
|
- | |||||
| 3 | 3191253 | Cooktop (white) |
|
- | |||||
| 4 | WP8286155CG | Cap, Burner Lf & Rr (cumberland Gray) (Replaces: 8286155CG) |
|
$ 89.27 | |||||
| 4 | WP8286153CG | Cap, Burner Rf (cumberland Gray) (Replaces: 8286153CG) |
|
$ 72.00 | |||||
| 4 | WP8286153CB | Cap, Burner Rf (coal Matte Black) (Replaces: 8286153CB) |
|
$ 61.97 | |||||
| 4 | WP8286154CB | Cap, Burner Lr (coal Matte Black) (Replaces: 8286154CB) |
|
$ 77.94 | |||||
| 4 | WP8286154CG | Cap, Burner Lr (cumberland Gray) (Replaces: 8286154CG) |
|
$ 86.04 | |||||
| 4 | WP8286155CB | Cap, Burner Lf & Rr (coal Matte Black) (Replaces: 8286155CB) |
|
$ 104.70 | |||||
| 5 | 8285887CG | Grate Left (cumberland Gray) |
|
- | |||||
| 5 | 8285887CB | Grate Left (coal Matte Black) |
|
- | |||||
| 5 | 8285885CG | Grate Right (cumberland Gray) |
|
- | |||||
| 5 | 8285885CB | Grate Right (coal Matte Black) |
|
- | |||||
| 6 | WP9782116 | Electrode (Replaces: 9782116) |
|
Immediately | $ 49.45 | ||||
| 7 | WP8286057WH | Knob, Control (4) (white) (Replaces: 8286057WH) |
|
$ 6.26 | |||||
| 7 | WP8286057BL | Knob, Control (4) (black) (Replaces: 8286057BL) |
|
$ 19.21 | |||||
| 8 | 8286551 | Orifice (lf & Rr) |
|
$ 89.96 | |||||
| 8 | WP3192523 | Orifice (lr) (Replaces: 3192523) |
|
$ 80.19 | |||||
| 8 | 8286473 | Orifice (rf) |
|
$ 73.44 | |||||
| 9 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 10 | 9760279 | Seal, Foam (stainless Models Only) |
|
$ 51.94 | |||||
| 11 | W10128449 | Holder, Orifice (rf) |
|
- | |||||
| 11 | WPW10128451 | Holder, Orifice (lf & Rr) (Replaces: W10128451) |
|
$ 99.80 | |||||
| 11 | WPW10128450 | Holder, Orifice (lr) (Replaces: W10128450) |
|
$ 106.59 | |||||
| 12 | WPW10406797 | Head, Burner (lf & Rr) (Replaces: 8286182) |
|
$ 79.64 | |||||
| 12 | WPW10406283 | Head, Burner (lr) (Replaces: 8286184) |
|
$ 66.87 | |||||
| 12 | WPW10406243 | Head, Burner (rf) (Replaces: 8286181) |
|
Immediately | $ 33.50 | ||||
| 13 | W10185266 | Rubber Foot (kit Of 4) (Replaces: 8286695) |
|
Immediately | $ 13.26 | ||||
| 4456627 | Harness, Wire (ignitor 28``) |
|
$ 189.13 | ||||||
| 4456626 | Harness, Wire Ignitor 15`` |
|
$ 66.34 |
