02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

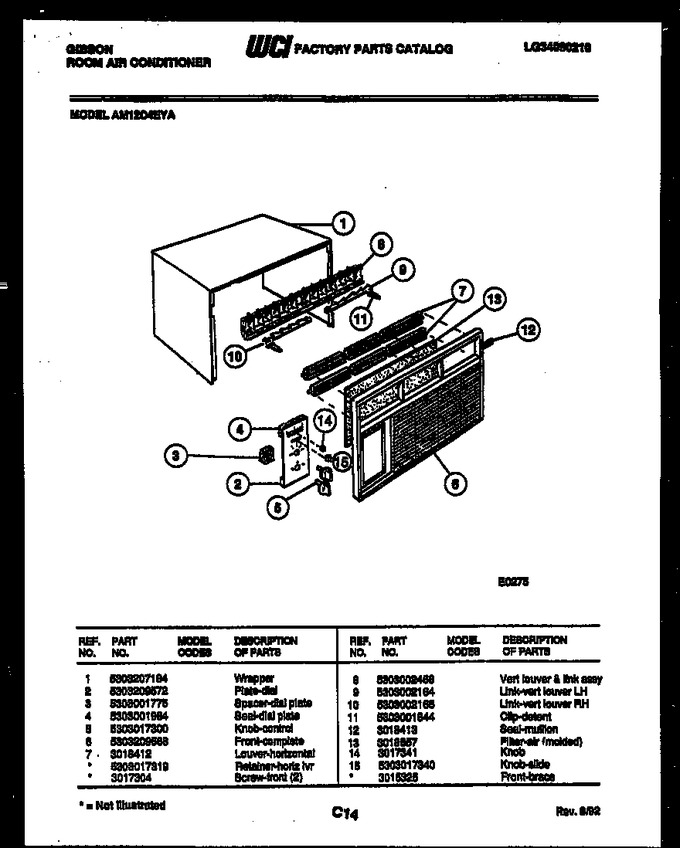

| 1 | 5303207184 | Wrapper |
|
- | |||||
| 2 | 5303209572 | Plate-dial |
|
- | |||||
| 3 | 5303001775 | Spacer - Dial Plate |
|
- | |||||
| 4 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 5 | 5303017300 | Knob-control |
|
- | |||||
| 6 | 5303209568 | Front-complete |
|
- | |||||
| 7 | 3018412 | Louver-horizontal |
|
- | |||||
| 8 | 5303002458 | Vert. Louver & Link Assy. |
|
- | |||||
| 9 | 5303002164 | Link-vert Louver (lh) |
|
- | |||||
| 10 | 5303002165 | Link-vert Louver (rh) |
|
- | |||||
| 11 | 5303001844 | Clip-detent |
|
- | |||||
| 12 | 3018413 | Seal-mullion |
|
- | |||||
| 13 | 3018657 | Filter-air (molded) |
|
- | |||||
| 14 | 3017341 | Knob |
|
- | |||||
| 15 | 5303017340 | Knob - Slide |
|
- | |||||
| 7A | 5303017319 | Retainer-horiz Lvr (non-illustrated) |
|
- | |||||
| 7B | 3017304 | Screw-front (2) (non-illustrated) |
|
- |
