02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

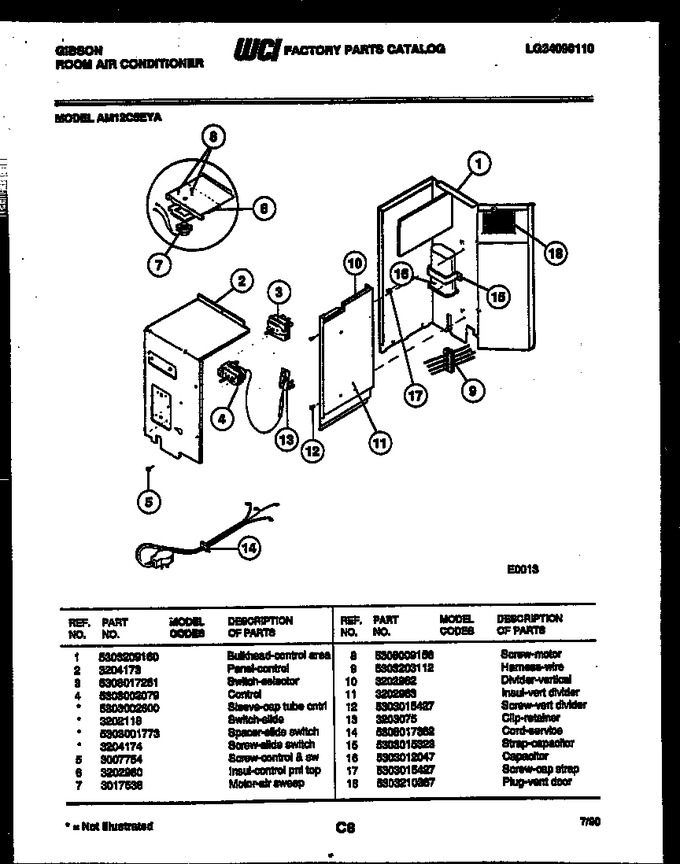

| 1 | 5303209160 | Bulkhead-control Area |
|
- | |||||
| 2 | 3204173 | Panel - Control |
|
- | |||||
| 3 | 5308017261 | Switch-selector |
|
- | |||||
| 4 | 5303002079 | Control |
|
- | |||||
| 5 | 3007754 | Screw-control & Sw |
|
- | |||||
| 6 | 3202960 | Insul - Control Pnl Top |
|
- | |||||
| 7 | 3017538 | Motor - Air Sweep |
|
- | |||||
| 8 | 5308009156 | Screw-motor |
|
- | |||||
| 9 | 5303203112 | Harness-wire |
|
- | |||||
| 10 | 3202962 | Divider-vertical |
|
- | |||||
| 11 | 3202963 | Insul - Vert. Divider |
|
- | |||||
| 12 | 5303015427 | Screw-vert Divider |
|
- | |||||
| 13 | 3203075 | Clip-retainer |
|
- | |||||
| 14 | 5308017362 | Cord-service |
|
- | |||||
| 15 | 5303015323 | Strap-capacitor |
|
- | |||||
| 16 | 5303012047 | Capacitor |
|
- | |||||
| 17 | 5303015427 | Screw-cap Strap |
|
- | |||||
| 18 | 5303210367 | Plug-vent Door |
|
- | |||||
| 4A | 5303002600 | Sleeve-cap Tube Cntrl (non-illustrated) |
|
- | |||||
| 4B | 3202118 | Switch-slide (non-illustrated) |
|
- | |||||
| 4C | 5303001773 | Spacer-slide Switch (non-illustrated) |
|
- | |||||
| 4D | 3204174 | Screw - Slide Switch (non-illustrated) |
|
- |
