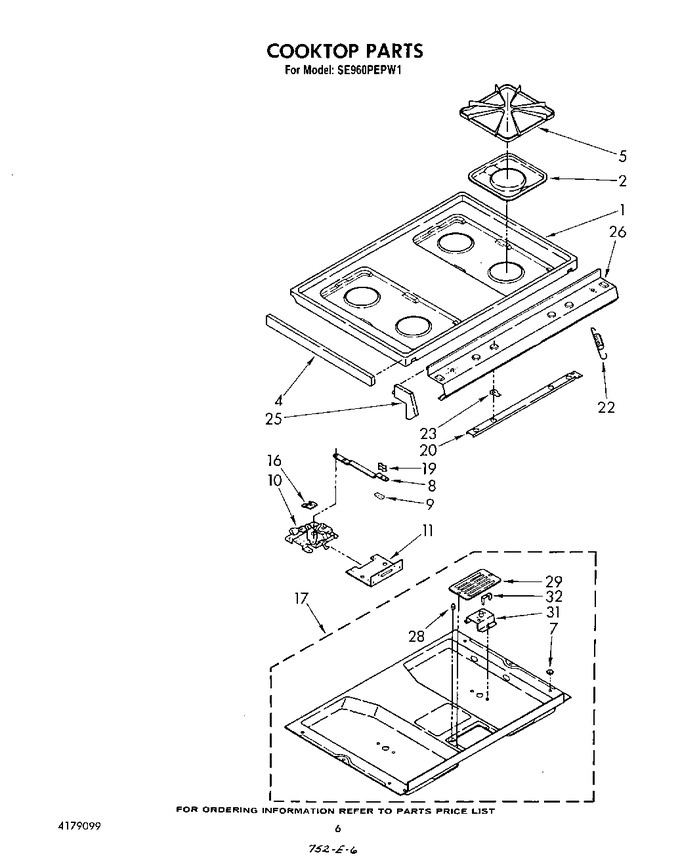

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786331		Top, Main (almond)		Appelez-nous	-
1	786330		Top, Main (toast)		Appelez-nous	-
1	786329		Top, Main (platinum)		Appelez-nous	-
1	786332		Top, Main (white)		Appelez-nous	-
2	WP786333		Bowl, Chrome   (Replaces: 786333)				$ 16.83
4	786343		Trim, Main Top (right Side)		Appelez-nous	-
4	786344		Trim, Main Top (left Side)		Appelez-nous	-
5	786354		Grate, Top Burner		Appelez-nous	-
7	786342		Spacer, Nylon (2)		Appelez-nous	-
8	786376		Handle, Latch		Appelez-nous	-
9	786690		Support, Latch		Appelez-nous	-
10	786303		Latch Assembly		Appelez-nous	-
11	786378		Bracket, Mounting Latch		Appelez-nous	-
16	786381		Bracket, Switch		Appelez-nous	-
17	786383		Burner Box		Appelez-nous	-
19	786386		Knob, Latch Handle		Appelez-nous	-
20	786390		Actuator, Spark Ignitor		Appelez-nous	-
22	786391		Spring		Appelez-nous	-
23	786392		Cam (4)		Appelez-nous	-
25	786394		End Cap (left)		Appelez-nous	-
25	786393		End Cap (right)		Appelez-nous	-
26	786397		Panel, Control		Appelez-nous	-
28	786682		Orifice		Appelez-nous	-
29	786683		Plate, Cover		Appelez-nous	-
31	786684		Bracket, Top (2)		Appelez-nous	-
32	786754		Bracket, Electrode		Appelez-nous	-
