SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts

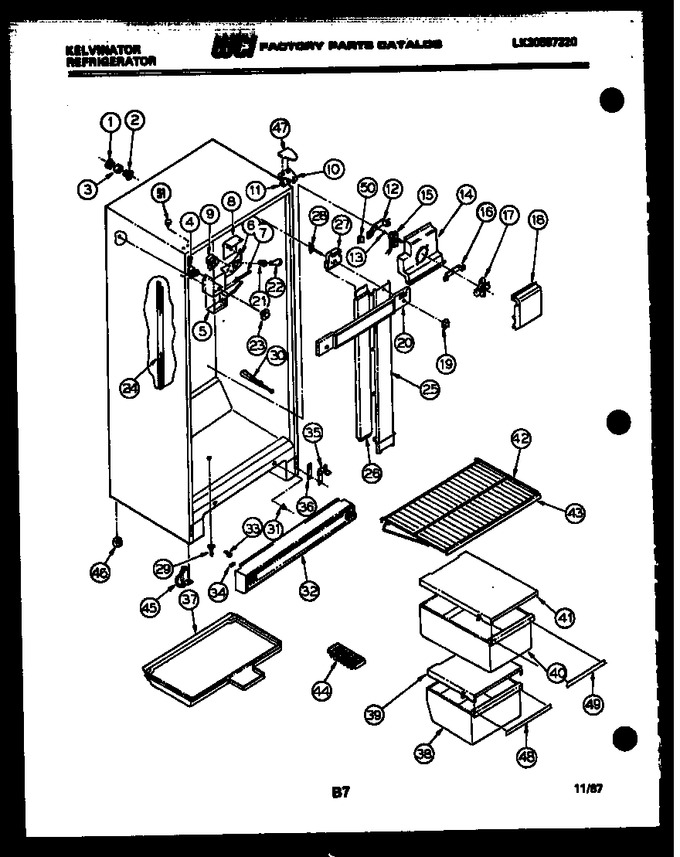

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G174734		Ferrule-outer (2)		Appelez-nous	-
2	G174733		Ferrule - Inner (2)		Appelez-nous	-
3	G85642		Tube-rubber (4)		Appelez-nous	-
4	G162205-07		Control, Temp		Appelez-nous	-
5	G169749		Cover, Control		Appelez-nous	-
6	G169812		Bracket, Mtg		Appelez-nous	-
7	G170287		Housing, Tube		Appelez-nous	-
8	G170465		Deflector Light		Appelez-nous	-
9	G187464		Timer		Appelez-nous	-
10	G183714		Hinge-top		Appelez-nous	-
11	G183861		Shim-top Hng		Appelez-nous	-
12	G185303		Bracket-rear		Appelez-nous	-
13	G187559		Bushing (2)				$ 48.20
14	G169597		Housing, Motor		Appelez-nous	-
15	G158289		Motor-fan		Appelez-nous	-
16	G185302		Bracket-front		Appelez-nous	-
17	G174705		Fan Blade		Appelez-nous	-
18	G169608		Cover - Fan		Appelez-nous	-
19	G169950-04		Knob, Damper		Appelez-nous	-
20	G169949-08		Shield, Light		Appelez-nous	-
21	G168510		Light Socket		Appelez-nous	-
22	G165723		Light Bulb		Appelez-nous	-
23	G162881-23		Knob, Temp Cont		Appelez-nous	-
24	G170694		Channel-rs & Ls		Appelez-nous	-
25	G169836		Air Duct		Appelez-nous	-
26	3015056		Insul Iwr Duct		Appelez-nous	-
27	3015057		Insul Upr Duct		Appelez-nous	-
28	G169850		Damper - Air Duct		Appelez-nous	-
29	G164843		Tube Drain		Appelez-nous	-
30	G17000-01		Damper, Meat Kpr		Appelez-nous	-
31	G149762		Switch Light		Appelez-nous	-
32	G161905-06		Grille		Appelez-nous	-
33	G162994		Clip Grille		Appelez-nous	-
34	G154397		Plug, Grille		Appelez-nous	-
35	G162383		Hinge-bottom		Appelez-nous	-
36	G162903		Shim, Btm Hng		Appelez-nous	-
37	G174360		Pan - Defrost		Appelez-nous	-
38	G163881		Storage Pan, Lwr		Appelez-nous	-
39	G163916-02		Cover, Lwr Pan		Appelez-nous	-
40	G163953-05		Storage Pan, Upr		Appelez-nous	-
41	G163915-02		Cover, Upr Pan		Appelez-nous	-
42	G162129-01		Shelf, Wire (4)		Appelez-nous	-
43	G161074-35		Trim, Shelf (4)		Appelez-nous	-
44	G156376-15		Tray, Ice		Appelez-nous	-
45	G186731		Roller Assy (2)		Appelez-nous	-
46	G162808		Roller Rear (2)		Appelez-nous	-
47	G183558-08		Cover-hng Avoc.		Appelez-nous	-
48	G161013-50		Trim, Lwr Pan		Appelez-nous	-
49	G161013-49		Trim, Upr Pan		Appelez-nous	-
50	G164571		Brkt, Connector		Appelez-nous	-
51	G174747-08		Button, Plug, Avocado		Appelez-nous	-
10A	G167103		Screw, Mtg (non-illustrated)		Appelez-nous	-
10B	G103903		Washer, Nylon				$ 3.10
12A	G162585		Screw		Appelez-nous	-
18A	G166567		Screw-mtg		Appelez-nous	-
20A	3015123		Label, Frzr Cont (non-illustrated)		Appelez-nous	-
20B	3015434		Label, Refr Cont (non-illustrated)		Appelez-nous	-
28A	G171508		Push Nut (non-illustrated)		Appelez-nous	-
30A	G167125		Screw, Mtg (non-illustrated)		Appelez-nous	-
35A	G99167		Screw, Mtg (2) (non-illustrated)		Appelez-nous	-
35B	G141673		Nut		Appelez-nous	-
36A	G142361		Pin		Appelez-nous	-
36B	G77210		Nut, Speed (2) (non-illustrated)		Appelez-nous	-
43A	G162928		Clip, Trim (12) (non-illustrated)		Appelez-nous	-
45A	G187491		Screw, Mtg (2) (non-illustrated)		Appelez-nous	-
46A	G162809		Pin, Roller (2) (non-illustrated)		Appelez-nous	-
46B	G162662		Push Nut (2) (non-illustrated)		Appelez-nous	-
4A	G177781		Wiring Harness (non-illustrated)		Appelez-nous	-
4B	G107080		Screw		Appelez-nous	-
50A	G162585		Screw		Appelez-nous	-
6A	G170565		Insul, Cont. Box (non-illustrated)		Appelez-nous	-
9A	G141851		Screw, Ground (non-illustrated)		Appelez-nous	-
9B	G105289		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
