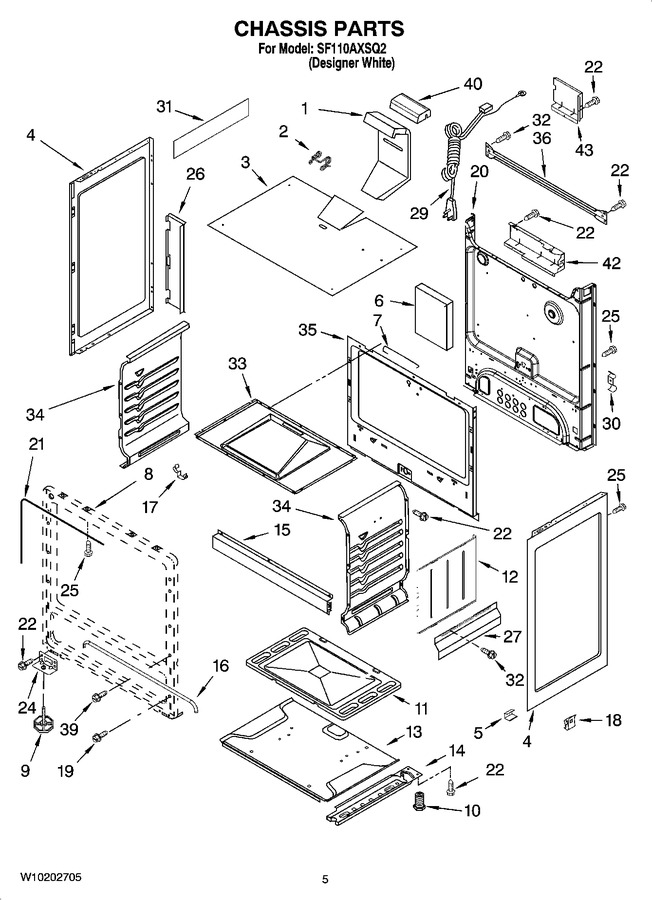

01 - Cooktop Parts
02 - Backguard Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Oven & Broiler Parts
06 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10116396 | Flue Box (Replaces: 98003799) |
|
$ 80.13 | |||||
| 2 | 98013690 | Clip, Flue |
|
- | |||||
| 3 | W10164112 | Shield, Insulation |
|
- | |||||
| 4 | WP98010042 | Panel, Side (2) (Replaces: 98010042) |
|
$ 143.89 | |||||
| 5 | 98005502 | Clip, Oven Bottom |
|
$ 12.10 | |||||
| 6 | 98006710 | Counterweight |
|
- | |||||
| 7 | 98006739 | Wire, Brick |
|
- | |||||
| 8 | W10166434 | Frame, Front |
|
- | |||||
| 9 | WP3196037 | Foot, Front (2) (Replaces: W10153610) |
|
$ 74.67 | |||||
| 10 | WPW10058460 | Foot, Rear (2) (Replaces: W10058460) |
|
Immediately | $ 7.07 | ||||
| 11 | WP98004449 | Bottom, Oven (Replaces: 98004449) |
|
$ 235.22 | |||||
| 12 | W10164109 | Baffle, Side (2) |
|
- | |||||
| 13 | 98003847 | Baffle, Base |
|
$ 215.85 | |||||
| 14 | 98003830 | Rail, Base (2) |
|
- | |||||
| 15 | 98012175 | Support, Burner |
|
- | |||||
| 16 | WP98017162 | Gasket, Broil Door (Replaces: 98017162) |
|
$ 108.82 | |||||
| 17 | 98005642 | Clip, Bulb (2) |
|
Immediately | $ 74.64 | ||||
| 18 | 98009179 | U-nut |
|
$ 12.02 | |||||
| 19 | W10155121 | Screw (4) |
|
- | |||||
| 20 | 98015100 | Back, Main |
|
- | |||||
| 21 | WPW10217472 | Seal, Oven (Replaces: 98017163) |
|
$ 119.27 | |||||
| 22 | W10837731 | Screw (Replaces: 98006633) |
|
$ 7.07 | |||||
| 24 | 98007126 | Base, Foot |
|
- | |||||
| 25 | W11233072 | Screw (Replaces: 98006632) |
|
Immediately | $ 12.62 | ||||
| 26 | 98006715 | Shield, Channel |
|
- | |||||
| 27 | 98007191 | Shield, Lower |
|
- | |||||
| 29 | W11173616 | Cord, Power (Replaces: 98014532) |
|
- | |||||
| 30 | 98005026 | Clip, Tubing |
|
- | |||||
| 31 | 98015346 | Foil, Side (2) |
|
- | |||||
| 32 | 98006634 | Screw |
|
- | |||||
| 33 | 98004447 | Top, Oven |
|
- | |||||
| 34 | 98004452 | Side, Oven (right Hand) |
|
- | |||||
| 34 | 98004451 | Side, Oven (left Hand) |
|
- | |||||
| 35 | 98005768 | Back, Oven |
|
- | |||||
| 36 | 98015363 | Support, Rear |
|
$ 73.69 | |||||
| 39 | WP98008545 | Screw (4) (Replaces: 98008545) |
|
$ 15.94 | |||||
| 40 | 98007205 | Cap, Insulation |
|
- | |||||
| 42 | 98014105 | Cover, Valve |
|
- | |||||
| 43 | 98014104 | Cover, Light Socket |
|
- | |||||
| W11706555 | Insulation, Wrap (Replaces: W10137227) |
|
- | ||||||
| W10137233 | Insulation, Back |
|
- |
