SELECT A DIAGRAM

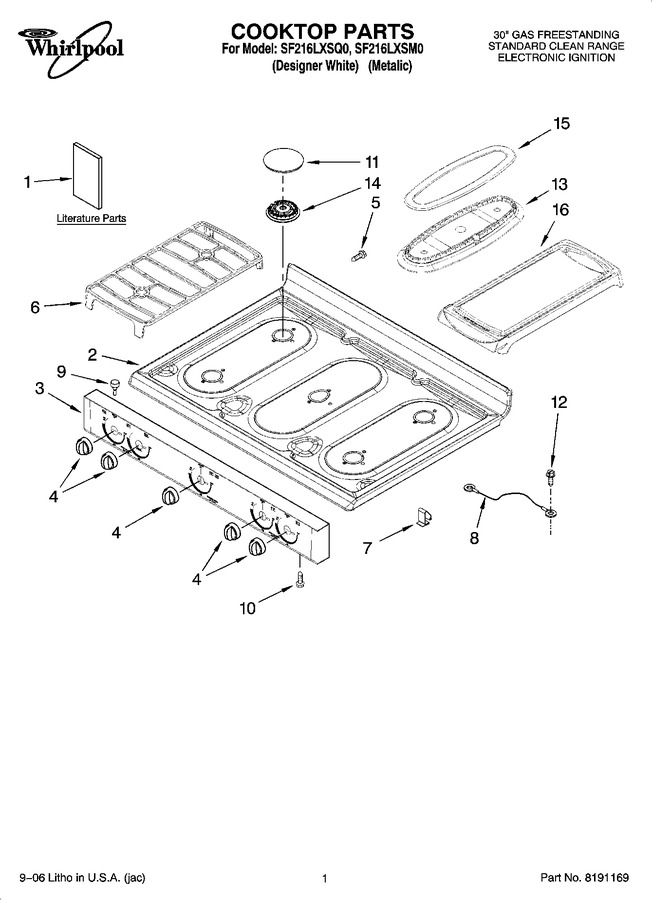

01 - Cooktop Parts


02 - Backguard Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Oven & Broiler Parts


06 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10110358		Instruct, Install		Appelez-nous	-
1	98015589		Installation Instr (template)		Appelez-nous	-
1	W10110357		Guide, Use & Care		Appelez-nous	-
1	98007130		Safer Cooking Tips		Appelez-nous	-
1	W10111753		Tech Sheet		Appelez-nous	-
2	W10110387		Cooktop (white)				$ 200.03
2	W10110093		Cooktop (metalic)		Appelez-nous	-
3	W10110437		Panel, Manifold (white)		Appelez-nous	-
3	W10110086		Panel, Manifold (metalic)		Appelez-nous	-
4	WP98006102		Knob, Burner (5) (white)   (Replaces: 98006102)				$ 17.53
4	WP98006100		Knob, Burner (5) (black)   (Replaces: 98006100)				$ 18.09
5	WP98007225		Screw   (Replaces: 98007225)				$ 6.26
6	98016580		Grate, Burner (3)		Appelez-nous	-
7	W11229684		Clip, Cooktop (2)   (Replaces: 98004722)				$ 10.67
8	3184020		Wire, Ground   (Replaces: 98014544)				$ 74.50
9	W10831827		Bumper, Cooktop   (Replaces: 98013389)		Appelez-nous	-
10	W11233072		Screw (3)   (Replaces: 98005000)			Immediately	$ 12.62
11	WP98017461		Cap, Burner (4)   (Replaces: 98017461)				$ 60.75
12	W10850756		Screw   (Replaces: 8534079)				$ 6.98
13	98017464		Fish Burner				$ 74.39
14	WP98017537		Burner, Top (4)   (Replaces: 98017537)				$ 77.78
15	98017539		Cap, Fish Burner				$ 154.55
16	98004565		Griddle		Appelez-nous	-
