SELECT A DIAGRAM

01 - Controls/basepan


02 - Door


03 - Electrical Components


04 - Light


05 - Magnetron/stirrer Motor


06 - Splash Shield/blower

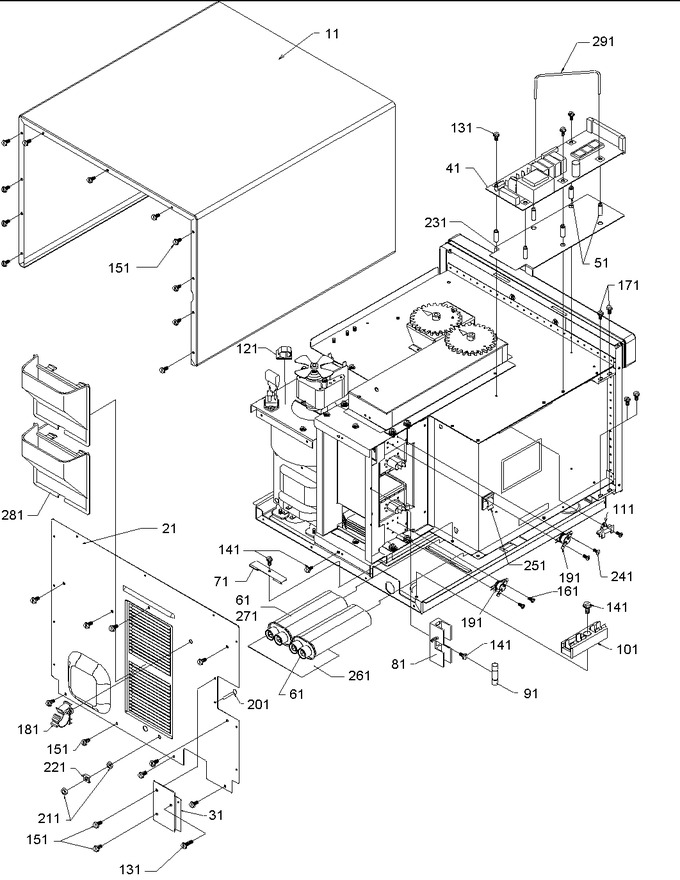

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12114004Q		Wrapper, Outercase		Appelez-nous	-
21	12296802		Access Pan-e Ct		Appelez-nous	-
31	12131206		Cover, Lamp (e-ct)		Appelez-nous	-
41	12100309		Board Hv/ Lv		Appelez-nous	-
51	M0800601		Spacer		Appelez-nous	-
61	10366915		Capacitor		Appelez-nous	-
71	12132501		Strap-capacitor		Appelez-nous	-
81	10091101		Fuse Holder		Appelez-nous	-
91	M0805202		Fuse,15 Amp		Appelez-nous	-
101	B5677203		Terminal Block		Appelez-nous	-
111	B5795302		Thermal Cut Out		Appelez-nous	-
121	M0104102		Clip, Cord				$ 8.10
131	M0216525		Screw		Appelez-nous	-
141	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
151	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
161	M0229916		Screw T.c		Appelez-nous	-
171	M0253540		Screw-tc		Appelez-nous	-
181	M0118705		Clip, Guide		Appelez-nous	-
191	31866P01		M4d69 Protector				$ 8.67
201	M0293507		Stud- Sc		Appelez-nous	-
211	M0282021		Nut-keps		Appelez-nous	-
221	12152201		Washer-u Type		Appelez-nous	-
231	12150002		Barrier, Pc Board		Appelez-nous	-
241	WP488234		Screw   (Replaces: M0234422)				$ 6.07
251	WPM0104106		Clip   (Replaces: M0104106)				$ 7.00
261	Y10459002		Overlay-s/p		Appelez-nous	-
291	12433101		Support, Outercase		Appelez-nous	-
