SELECT A DIAGRAM

Diagram for 01 - Blower Assy & Mtg
01 - Blower Assy & Mtg

Diagram for 02 - Circuit Board/high Volt/oven Rack Assy
02 - Circuit Board/high Volt/oven Rack Assy

Diagram for 03 - Control & Triac Assemblies
03 - Control & Triac Assemblies

Diagram for 04 - Door Assy/removal & Outer Case
04 - Door Assy/removal & Outer Case

Diagram for 05 - Heater Box & Light Assemblies
05 - Heater Box & Light Assemblies

Diagram for 06 - Oven Cavity & Stirrer System Assemblies
06 - Oven Cavity & Stirrer System Assemblies

Diagram for 07 - Oven Cavity Assy
07 - Oven Cavity Assy

Diagram for 08 - Rear Access Panel Assy
08 - Rear Access Panel Assy


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
52 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 7.04

92 10978601 Duct-blower/mag Appelez-nous -
162 M0218118 Screw Appelez-nous -
182 10978701 Cover-mag Inlet Appelez-nous -
262 R0156991 Touch Panel(top) Amana Appelez-nous -
272 R0156993 Touch Panel (side) Appelez-nous -
412 D7681501 Triac Special Order $ 44.05

422 10172901 Snubber Assembly Appelez-nous -
452 M0223416 Screw-mach Appelez-nous -
462 M0800401 Spacer-hex Appelez-nous -
492 WP90767 Screw   (Replaces: M0216529) In-Stock Immediately $ 7.04

682 12040201 Vfd- Mod (lighted Display) Appelez-nous -
832 M0102305 Clamp, Tube Appelez-nous -
861 M0293502 Stud-self Clinch Appelez-nous -
871 M0282005 Nut K Special Order $ 7.07

911 M0321204 Wire Tie Appelez-nous -
932 12084501 Shield, Triac Appelez-nous -
972 WPM0104106 Clip,cord   (Replaces: M0104101) Special Order $ 7.00

1011 M0293507 Stud- Sc Appelez-nous -
1021 12152201 Washer-u Type Appelez-nous -
1031 M0282021 Nut-keps Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

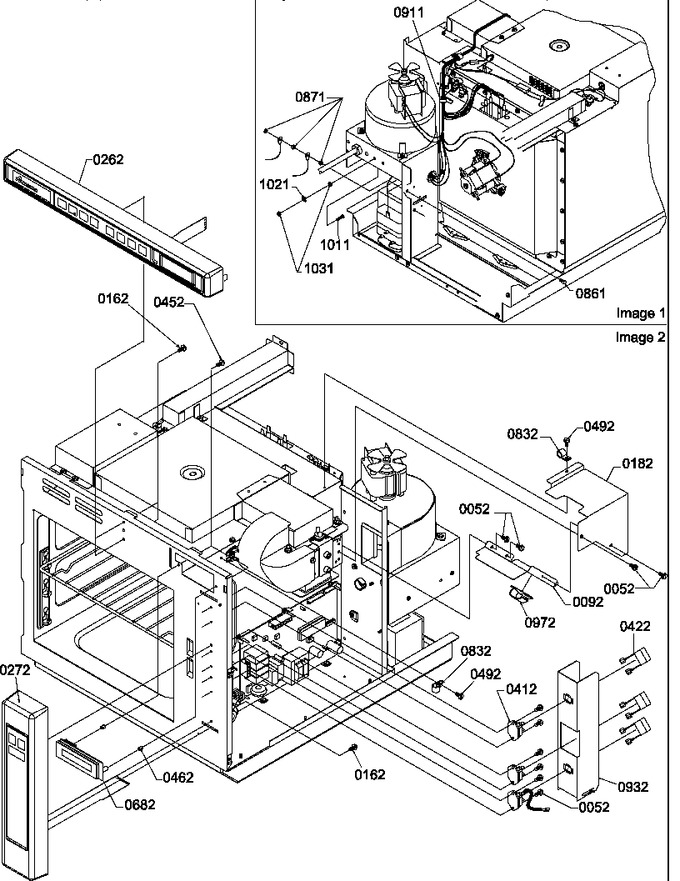

Diagram for UCA2000 (BOM: P1194111M)
