01 - Body
02 - Door
03 - Gas Controls
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

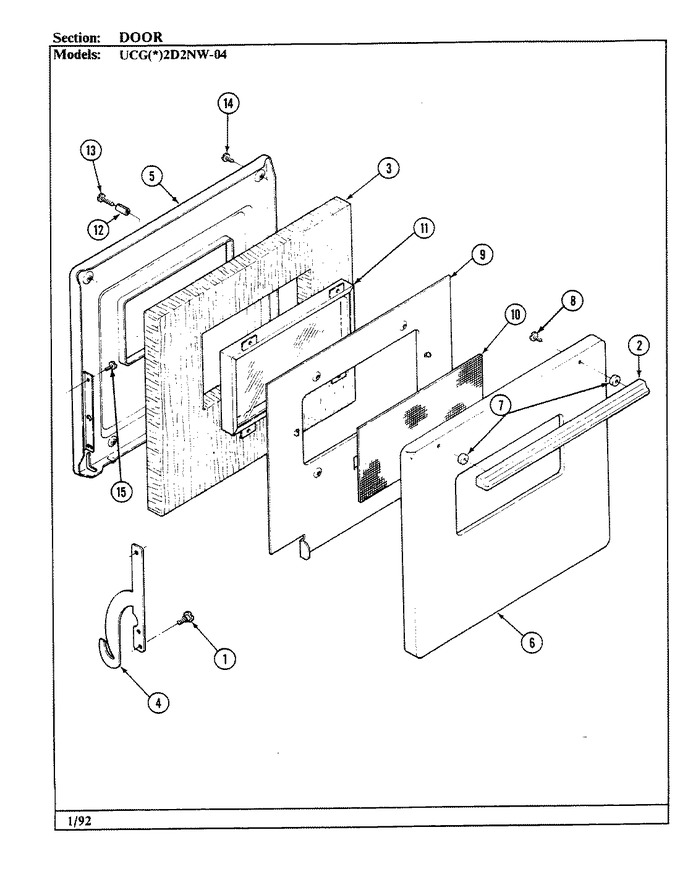

| 1 | 7118P009-60 | Bolt, Shoulder | 01 |
|
- | ||||
| 2 | 7701P029-60 | Handle, Door (chr) | 01 |
|
- | ||||
| 3 | 7002P102-60 | Insulation, Oven Door | 01 |
|
- | ||||
| 4 | 3418F053-34 | Hinge, Oven Door | 01 |
|
- | ||||
| 5 | 2402W103-19 | Lining Door | 01 |
|
- | ||||
| 6 | 2401W061-74 | Panel, Oven Door (alm) | 01 |
|
- | ||||
| 7 | 8010P020-60 | Spacer, Door Handle | 01 |
|
- | ||||
| 8 | WP3387230 | Screw, Clamp (Replaces: 7101P080-60) | 01 |
|
Immediately | $ 7.69 | |||
| 8 | W10080180 | Nut Lock (Replaces: 7103P072-60) | 01 |
|
$ 12.13 | ||||
| 9 | 3601F196-80 | Baffle, Door | 01 |
|
- | ||||
| 10 | 7902P244-60 | Glass, Oven Door (outer) | 01 |
|
- | ||||
| 11 | 7907P007-60 | Glass, Oven Door Assy | 01 |
|
- | ||||
| 12 | 7506P052-60 | Tube Spacer | 01 |
|
- | ||||
| 13 | WP7101P485-60 | Screw, Base (Replaces: 7101P084-60) | 01 |
|
$ 26.33 | ||||
| 14 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 15 | WP7101P126-60 | Screw (Replaces: 7101P059-60) | 01 |
|
Immediately | $ 6.85 |
