SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer (ucgx3d5nw-ad)
04 - Gas Controls
05 - Oven
SELECT A DIAGRAM
New Model Search:

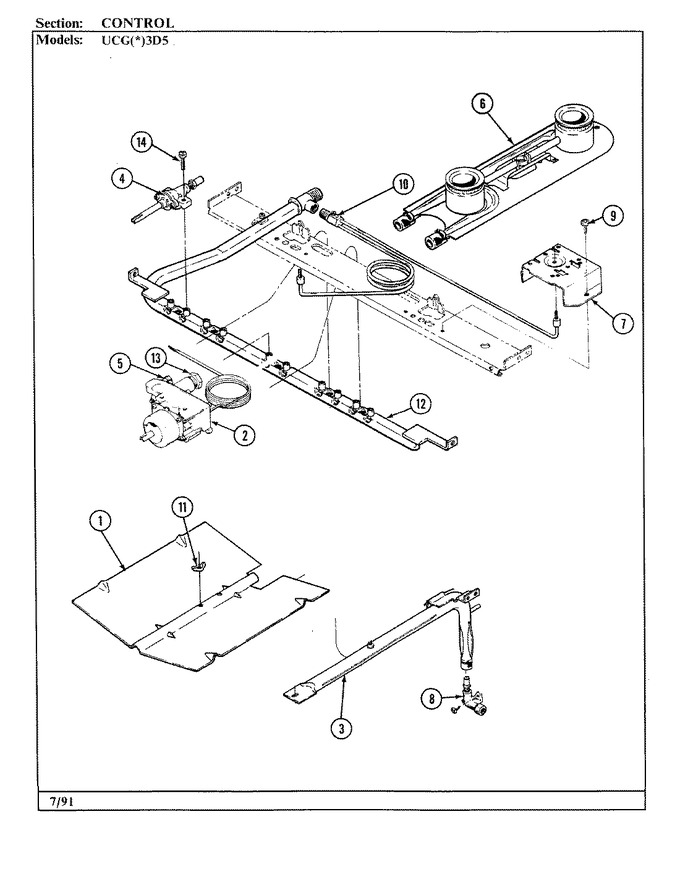

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F181-45 | Baffle, Oven Burner | 1 |
|
- | ||||
| 2 | 7506P011-60 | Tube | 1 |
|
- | ||||
| 2 | 7101P009-60 | Screw, Thermostat | 1 |
|
- | ||||
| 2 | 3414F056-44 | Tubing | 1 |
|
- | ||||
| 2 | 7515P004-60 | Thermostat, Gas | 1 |
|
- | ||||
| 3 | 7505P097-60 | Burner, Bake | 1 |
|
- | ||||
| 4 | 7502P108-60 | Valve, Burner | 1 |
|
- | ||||
| 5 | 1555279 | Nut, 1/4`` Loxit | 1 |
|
- | ||||
| 6 | 3412A004-23 | Uni-burner Assy | 1 |
|
- | ||||
| 7 | 3807F200-45 | Support, Top Pilot | 1 |
|
- | ||||
| 8 | 7507P007-60 | Fitting | 1 |
|
- | ||||
| 9 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 10 | 7103P070-60 | Nut, Top Pilot | 1 |
|
- | ||||
| 10 | 7505P080-60 | Pilot, Top Burner | 1 |
|
- | ||||
| 11 | 7103P070-60 | Nut, Top Pilot | 1 |
|
- | ||||
| 12 | 7513P028-60 | Pipe, Manifold | 1 |
|
- | ||||
| 13 | 1555258K | 3/8`` Nut & Ferrule | 1 |
|
- | ||||
| 14 | 7101P043-60 | Screw, Control Valve | 1 |
|
- |
