SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Controls
04 - Door/drawer
05 - Oven
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:

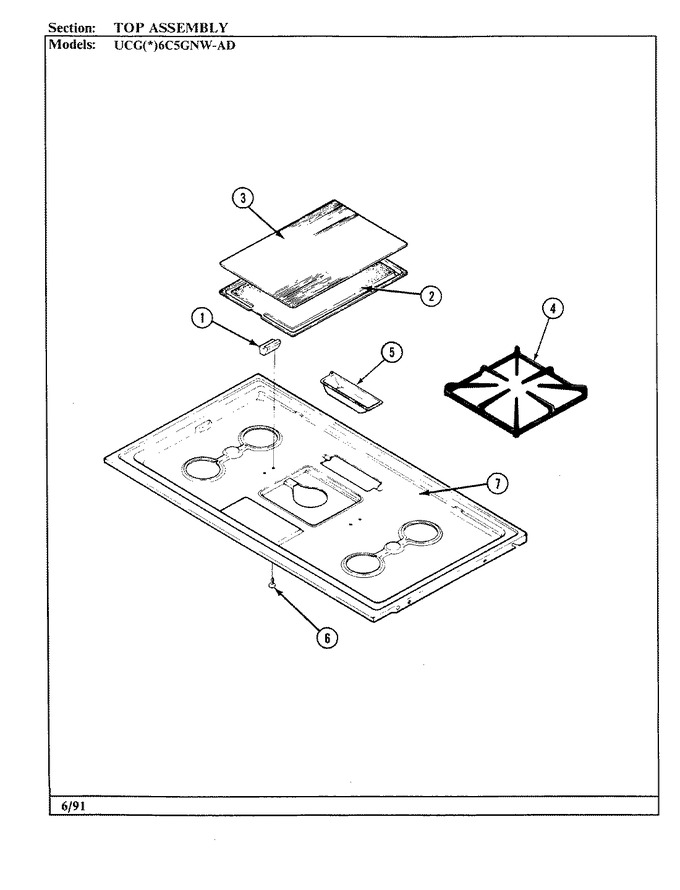

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8004P003-60 | Support | 1 |
|
- | ||||
| 2 | W10116823 | Kit, Griddle | 1 |
|
- | ||||
| 3 | 2005F002-30 | Cover, Griddle Stainless | 1 |
|
- | ||||
| 4 | 2003W001-00 | Grate | 1 |
|
- | ||||
| 5 | 3401F017-23 | Pan, Grease | 1 |
|
- | ||||
| 6 | 7101P006-60 | Screw, Bkgd Trim Bwn | 1 |
|
- | ||||
| 7 | 2001F045-81 | Top, Main White | 1 |
|
- |
