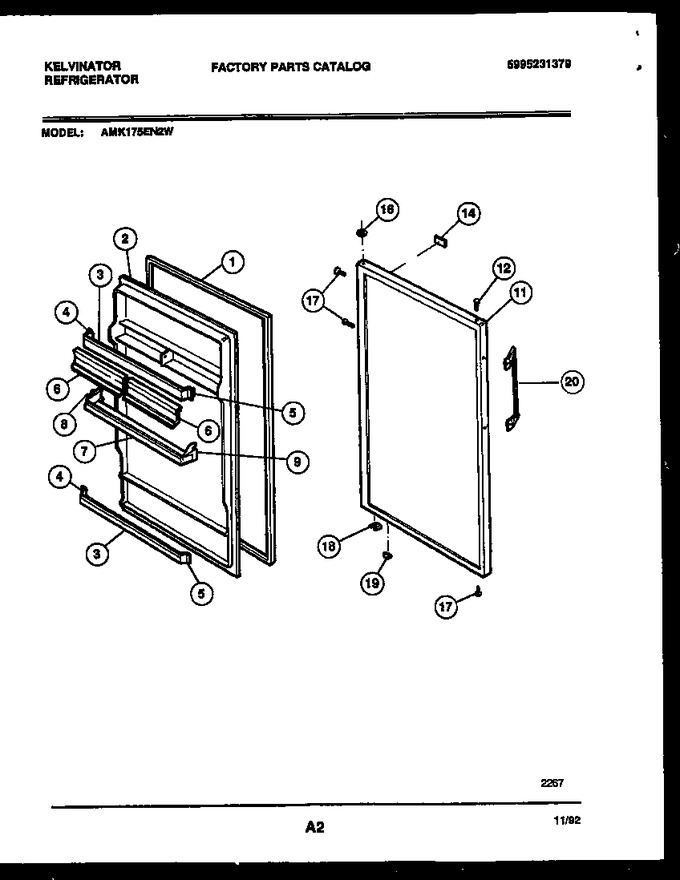

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303007357		Gasket-refrigerator		Appelez-nous	-
2	3016565		Panel-inner Door		Appelez-nous	-
3	3016559		Rack-upper And Lower (3)		Appelez-nous	-
4	5303204847		Support-lh (3)		Appelez-nous	-
5	5303204846		Support-rh (3)		Appelez-nous	-
6	3016560		Dairy Door (2)		Appelez-nous	-
7	5303206690		Rack-shelf-center (2)		Appelez-nous	-
8	5303206681		End Cap-lh (2)				$ 64.84
9	5303206680		End Cap-rh (2)				$ 59.06
11	G190024-09		Door-wheat		Appelez-nous	-
12	5308000176		Plug-hinge Hole-wheat		Appelez-nous	-
14	3016912		Nameplate Assy		Appelez-nous	-
16	5308012007		Bearing-hinge (4)		Appelez-nous	-
17	5308000180		Plug - Wheat		Appelez-nous	-
18	5308000255		Door Stop				$ 42.20
19	5308000790		Bumper, Light Switch				$ 3.86
20	3016570		Handle		Appelez-nous	-
*28828	5303007739		Insulation, Bulk		Appelez-nous	-
*28828	5308011745		Screw				$ 10.38
*28828	3016569		Insert-handle		Appelez-nous	-
*28828	215364900		Handle End-top				$ 108.52
*28828	215364800		Handle End-bottom				$ 73.92
*28828	3015068		Container-egg		Appelez-nous	-
18A	5308011745		Screw				$ 10.38
19A	5308002748		Screw		Appelez-nous	-
2A	5308002748		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
