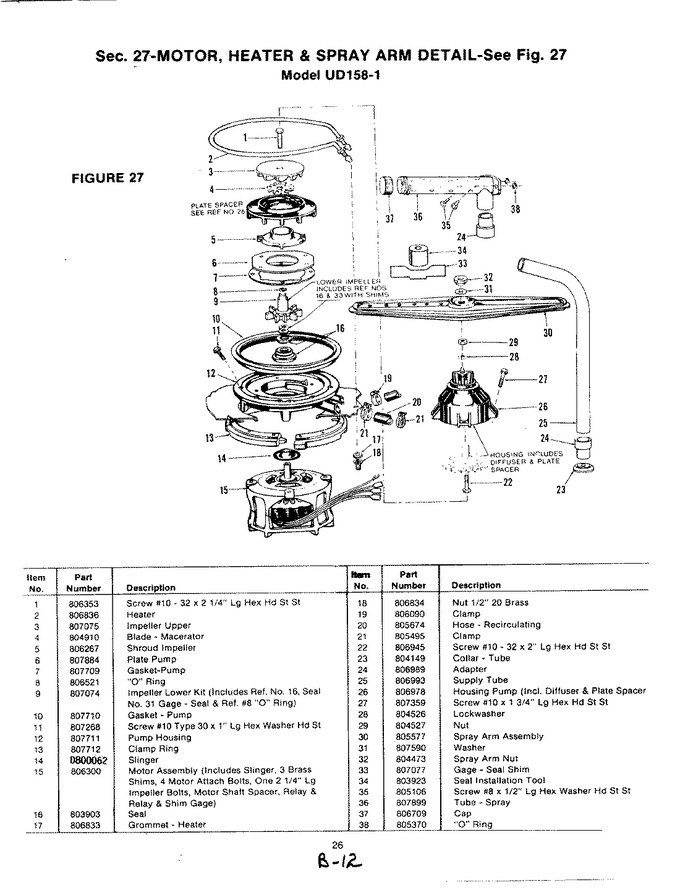

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 806353 | Screw |
|
- | |||||
| 2 | 806836 | Heater Kit |
|
- | |||||
| 3 | 807075 | Impeller |
|
$ 0.24 | |||||
| 4 | COMM PART | Macerator Blade (Replaces: 804910) |
|
- | |||||
| 5 | 806267 | Shroud |
|
- | |||||
| 6 | 807884 | Pump Plate |
|
- | |||||
| 7 | 5300807709 | Gasket (Replaces: 807709) |
|
$ 54.26 | |||||
| 8 | 806521 | O Ring |
|
- | |||||
| 9 | 5300808042 | Sub 808042 (Replaces: 807074) |
|
- | |||||
| 10 | 807710 | Pump Gasket |
|
- | |||||
| 11 | 807268 | Screw |
|
- | |||||
| 12 | 807711 | Pump Housing |
|
- | |||||
| 13 | 807712 | Clamp Ring |
|
- | |||||
| 14 | D800062 | Slinger |
|
- | |||||
| 15 | 806300 | Motor |
|
- | |||||
| 16 | 803903 | Gasket |
|
- | |||||
| 17 | 5300806833 | Grommet (Replaces: 806833) |
|
$ 5.34 | |||||
| 18 | 154106202 | Nut (Replaces: 806834) |
|
Immediately | $ 18.32 | ||||
| 19 | 806090 | Clamp |
|
- | |||||
| 20 | 805674 | Hose |
|
- | |||||
| 21 | 805495 | Clamp |
|
- | |||||
| 22 | 806945 | Screw |
|
- | |||||
| 23 | 804149 | Collar |
|
- | |||||
| 24 | 806989 | Adaptor |
|
- | |||||
| 25 | 806993 | Supply Tube |
|
- | |||||
| 26 | 806978 | Pumphousing Kit |
|
- | |||||
| 27 | 807359 | Screw |
|
- | |||||
| 28 | COMM PART | Lockwasher (Replaces: 804526) |
|
- | |||||
| 29 | 316205500 | Nut (Replaces: 804527) |
|
$ 11.34 | |||||
| 30 | 805577 | Lwr Spray Arm |
|
- | |||||
| 31 | COMM PART | Washer (Replaces: 807590) |
|
- | |||||
| 32 | 804473 | Nut |
|
- | |||||
| 33 | 807077 | Shim Gauge |
|
- | |||||
| 34 | 803923 | Seal Tool |
|
- | |||||
| 35 | WP67006908 | Screw (Replaces: 805106) |
|
Immediately | $ 7.16 | ||||
| 36 | 807899 | Spray Tube |
|
- | |||||
| 37 | 806709 | Cap |
|
- | |||||
| 38 | 805370 | O Ring |
|
- |
