Diagram for 05 - Motor, Heater & Spray Arm (ud458)
05 - Motor, Heater & Spray Arm (ud458)

Diagram for 06 - Rack (ud458, Md458)
06 - Rack (ud458, Md458)

Diagram for 07 - Tub (ud458)
07 - Tub (ud458)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 806353 Screw Appelez-nous -
2 806836 Heater Kit Appelez-nous -
3 807075 Impeller Special Order $ 0.24

4 COMM PART Macerator Blade   (Replaces: 804910) Appelez-nous -
5 806267 Shroud Appelez-nous -
6 806390 Pump Plate Appelez-nous -
7 806521 O Ring Appelez-nous -
8 5300808042 Sub 808042   (Replaces: 807074) Appelez-nous -
9 807268 Screw Appelez-nous -
10 804596 Cover Plate Appelez-nous -
11 805096 Pump Gasket Appelez-nous -
12 806986 Pump Gasket Appelez-nous -
13 806985 Pump Housing Appelez-nous -
14 D800062 Slinger Appelez-nous -
15 806300 Motor Appelez-nous -
16 803903 Gasket Appelez-nous -
17 5300806833 Grommet   (Replaces: 806833) Special Order $ 5.34

18 154106202 Nut   (Replaces: 806834) In-Stock Immediately $ 18.32

19 806090 Clamp Appelez-nous -
20 805674 Hose Appelez-nous -
21 805495 Clamp Appelez-nous -
22 806945 Screw Appelez-nous -
23 806978 Pumphousing Kit Appelez-nous -
24 807359 Screw Appelez-nous -
25 807359 Screw Appelez-nous -
26 316205500 Nut   (Replaces: 804527) Special Order $ 11.34

27 805696 Sump Cover Special Order $ 167.70

28 805577 Lwr Spray Arm Appelez-nous -
29 807361 Washer Appelez-nous -
30 804473 Nut Appelez-nous -
31 807077 Shim Gauge Appelez-nous -
32 803923 Seal Tool Appelez-nous -
33 W11233072 Screw   (Replaces: 806656) In-Stock Immediately $ 12.62

34 WP67006908 Screw   (Replaces: 805106) In-Stock Immediately $ 7.16

35 807067 Delivery Arm Appelez-nous -
36 804149 Collar Appelez-nous -
37 807487 Supply Tube Appelez-nous -
38 807386 Cotter Pin Special Order $ 1.10

39 805781 Plug Appelez-nous -
40 805782 Gasket Appelez-nous -
41 805370 O Ring Appelez-nous -
42 805786 Upr Spray Arm Appelez-nous -
43 806963 Spindle Kit Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

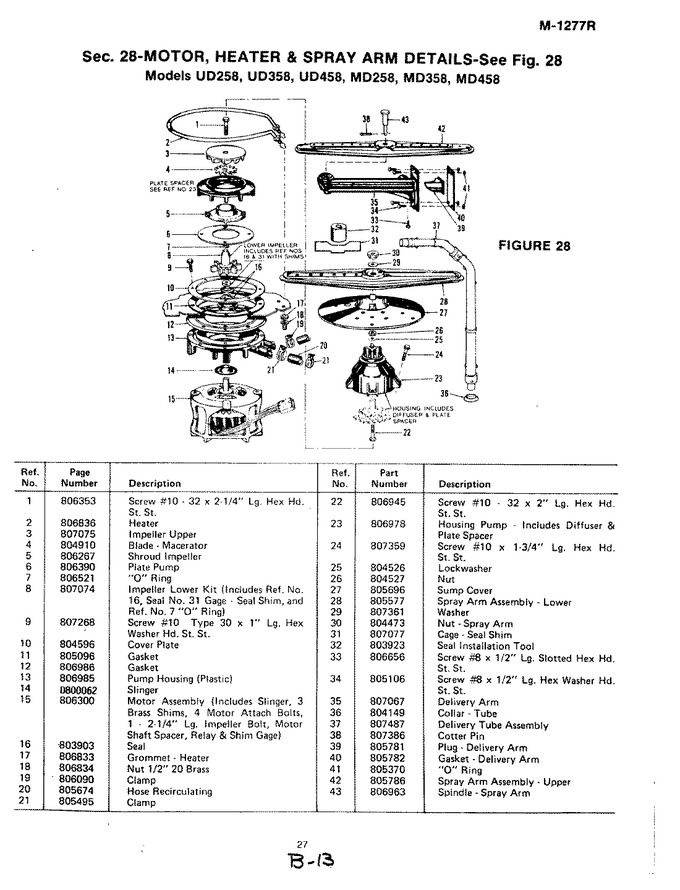

Diagram for UD458
