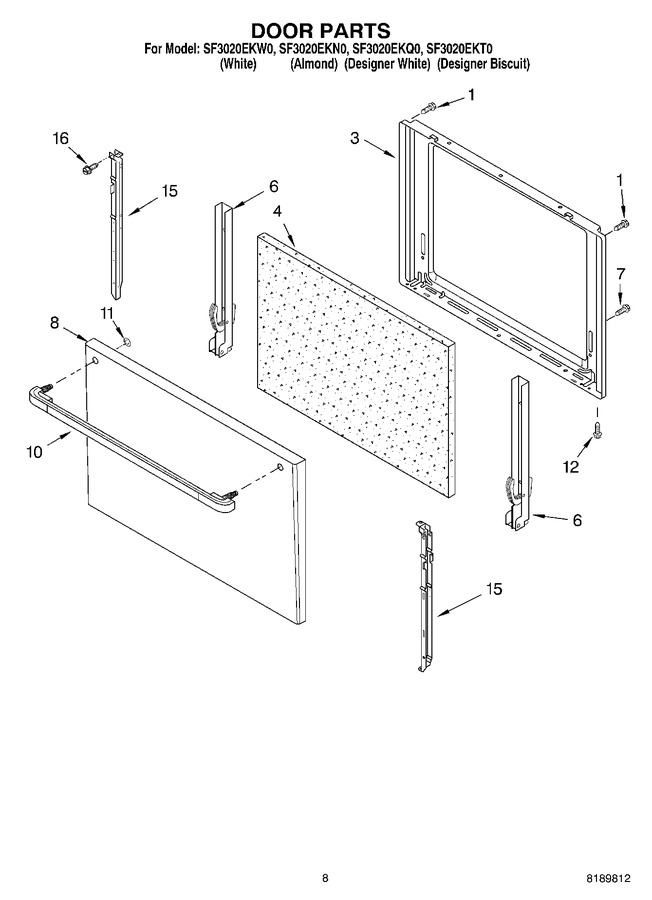

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP98004218		Screw   (Replaces: 98004218)				$ 6.95
3	98010183		Liner, Door		Appelez-nous	-
4	98006853		Insulation, Door		Appelez-nous	-
6	98006897		Hinge, Door (2)		Appelez-nous	-
7	W11206744		Screw   (Replaces: 98008699)				$ 12.20
8	98013502		Panel, Oven Door (biscuit)		Appelez-nous	-
8	98009488		Panel, Oven Door (white)		Appelez-nous	-
8	98009485		Panel, Oven Door (almond)		Appelez-nous	-
10	98008289		Handle, Oven Door (biscuit)		Appelez-nous	-
10	WP98006181		Handle, Oven Door (white)   (Replaces: 98006181)				$ 178.58
10	W10819915		Handle, Oven Door (black)   (Replaces: 98006180)		Appelez-nous	-
11	WP98004650		Nut, Push   (Replaces: 98004650)				$ 6.26
12	WP59002061		Screw   (Replaces: 98004993)				$ 6.98
15	98004629		Retainer (left)		Appelez-nous	-
15	98004564		Retainer (right)		Appelez-nous	-
16	814381		Pin Kit-dr Removal				$ 7.73
16	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
16	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
16	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
16	350942		Primer (white)   (Replaces: 206922)				$ 80.69
16	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
16	978883		Almond (uncut)		Appelez-nous	-
16	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
16	98007059		Anti-tip Kit		Appelez-nous	-
16	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
16	WP3400805		Screw   (Replaces: 98004219)				$ 6.47
16	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
16	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
16	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
16	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
16	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
16	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
16	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
16	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
16	242831		Wire (14 Ga. 200 C Red)				$ 342.23
16	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
16	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
16	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
16	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
16	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 74.76
16	261582		Grease		Appelez-nous	-
16	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
16	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
16	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
16	W11582239		Cord, Power   (Replaces: 98005822)				$ 15.08
16	98005561		Harness, Switch		Appelez-nous	-
16	98007373		Harness, T-stat		Appelez-nous	-
16	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
16	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
