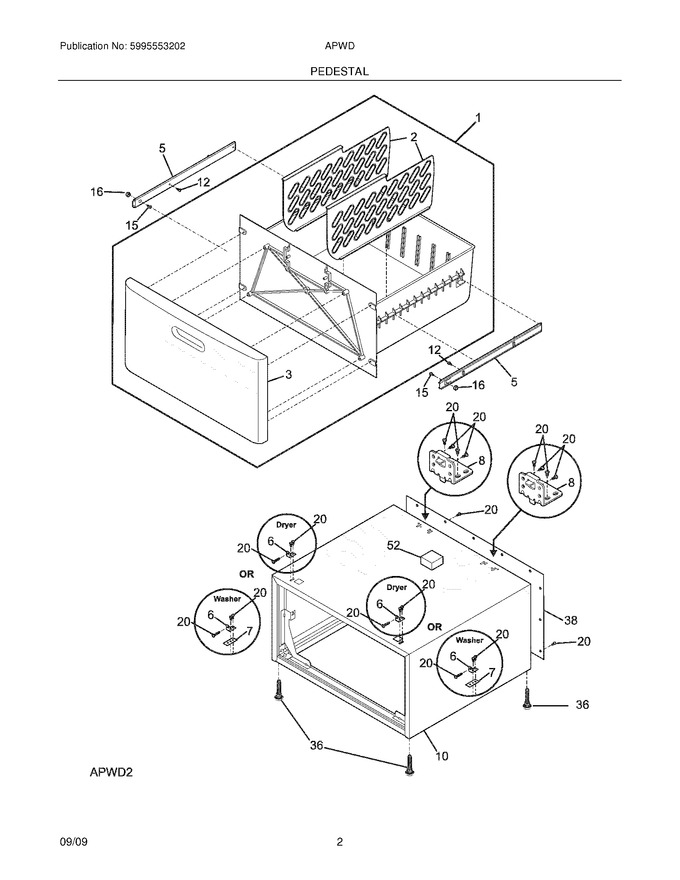

01 - Cover
03 - Pedestal
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 134600225 | Drawer,silver ,assembly |
|
- | |||||
| 2 | 134442300 | Divider,drawer ,inner ,(2) |
|
- | |||||
| 3 | 134600325 | Panel,drawer ,silver ,front |
|
- | |||||
| 5 | 134443700 | Slide,drawer Track ,(2) |
|
$ 132.40 | |||||
| 6 | 5304523385 | Bracket,mounting ,front (Replaces: 134830300) |
|
Immediately | $ 30.90 | ||||
| 7 | 134609900 | Spacer,plate ,washer ,(2) |
|
$ 38.01 | |||||
| 8 | 5304523385 | Bracket,mounting ,rear (Replaces: 134816300) |
|
Immediately | $ 30.90 | ||||
| 10 | 134797125 | Cabinet,pedestal ,silver |
|
- | |||||
| 12 | 5308014215 | Screw,sheet Metal ,6-20 X 0.375 ,(2) (Replaces: 134477400) |
|
$ 2.28 | |||||
| 15 | 134509900 | Screw,machine ,6-32 X 0.625 ,(2) |
|
$ 14.18 | |||||
| 16 | 134510400 | Nut,locking ,6-32 ,(2) ,nylon Insert |
|
$ 17.64 | |||||
| 20 | 134549700 | Screw,10-16 X 0.500 ,(28) |
|
Immediately | $ 12.29 | ||||
| 36 | 5303937190 | Leveling Leg Assy,bolt,pad & Nut (Replaces: 131841604) |
|
$ 65.92 | |||||
| 38 | 134802700 | Panel,back |
|
- | |||||
| 52 | 131931202 | Dampener,vibration ,foam |
|
$ 17.35 | |||||
| NI | 5304523385 | Installation Kit,mtg Hardware (Replaces: 137148200) |
|
Immediately | $ 30.90 |
